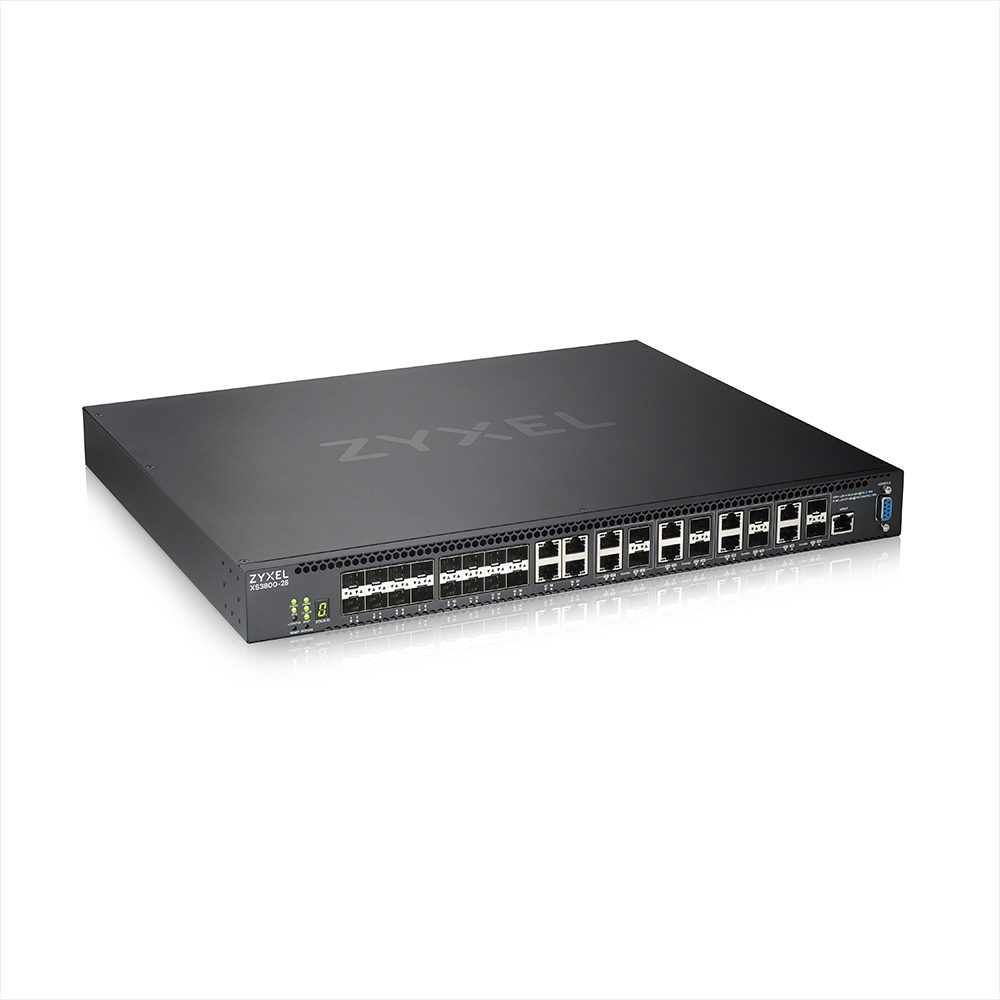

ZyXEL XS3800-28, 28-портов 10GbE L2+ управляем комутатор Nebula Flex Pro (двойно AC, 1 година NCC Pro pack лиценз в комплект)
Описание
Designed for small and medium businesses with 10GBASE-T connectivity and advanced L2+/L3 lite features, the Zyxel XS3800 switch series allows you to work with ease and convenience. It offers up to 12 multi-gigabit ports to help you prepare for network expansions with multi-gigabit devices such as servers, workstations and NAS. Besides aggregation, advanced audio and video equipment is trending to migrate to an uncompressed high-performance ProAV network with 10 Gigabit connectivity. The ZyXEL XS3800 provides everything needed for high-bandwidth ProAV network infrastructure. It is also the first 10-gigabit cloud switch that can increase cloud network bandwidth. This switch series features NebulaFlex Pro, which gives you extended flexibility to easily switch network management modes between standalone and the intuitive Nebula cloud platform. Nebula provides both an intuitive web interface and a mobile app to deliver a streamlined experience for network installation and management, without the cost of additional software or a hardware controller.
Specifications
| Management | Standalone management by Web interface, Cloud management by Nebula Control Center, iStacking, CLI, DHCP, Management through console, telnet, SNMP |
| Routing | Static (Routing table: 1K), Basic Routing License RIP v1/v2, Basic Routing License OSPFv2, Basic Routing License DVMRP |
| VLAN (number, standards) | 802.1Q static VLANs/dynamic VLANs: 4 K/4 K; Port-based/Vendor ID-based/Protocol-based/IP subnet-based/Private VLAN; VLAN trunking; VLAN translation; VLAN ingress filtering; 802.1ad VLAN stacking (Q-in-Q); LACP algorithm of source/destination IP; GVRP; L2P |
| QoS | 8 queues per Port, 802.1p queuing method: SPQ/WRR/WFQ; Storm control: Broadcast, Multicast, Unknown Unicast (DLF); Port-based rate limiting; Rate limiting, per IP/TCP/UDP per port, Policy-based rate limiting, 802.3x flow control; 802.1p CoS; DSCP |
| L2 network standards | IEEE 802.3z, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p, IEEE 802.1ab, IEEE 802.3ah |
| IPv6 functionality | IPv6 over Ethernet, IPv6 addressing architecture; Dual stack; ICMPv6; Path MTU; Minimum path MTU size of 1280; Encapsulation for minimum MTU of 1500; Neighbor discovery; DHCPv6 Relay |
| Security | 802.1x; Port security; MAC authentication; Layer 2 MAC filtering; Layer 3 IP filtering; Layer 4 TCP/UDP socket filtering; BPDU transparency; Static MAC forwarding; RADIUS; TACACS+; SSH v2; SSL; DHCP; ARP; Policy-based security filtering |
Спецификации
- Warranty
- 60 месеца
- Power Over Ethernet (PoE)
- -
- Вентилатори
- -
- Опция за монтаж
- Rackmount
- Тип суич
- Flexible Port
- Захранване
- Internal (100 - 240 V AC, 50/60 Hz)
- Общ брой портове
- 28
- MAC адреси
- 32 K
- Тип основни портове
- 16x10GE SFP, 4x10GBase-T
- Uplink портове
- 8 dual personality
- Свободни (10GB) слотове
- 16x 10-Gigabit SFP+
- Стекируем
- Физическо стекиране до 4 устройства
- Памет (Flash, RAM)
- 64 MB/8 GB (Flash/RAM)
- Капацитет за маршрутизиране/превключване, Gbps
- 560 Gbps
- Пропускателна способност, Mpps
- 416 Mpps
- L3 мрежови стандарти
- IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, ECMP, VRRP
- Размери (Ш, Д, В), mm
- 441 x 360 x 44 мм
- SKU
- 0006303926290
- MPN
- XS3800-28-ZZ0101F
