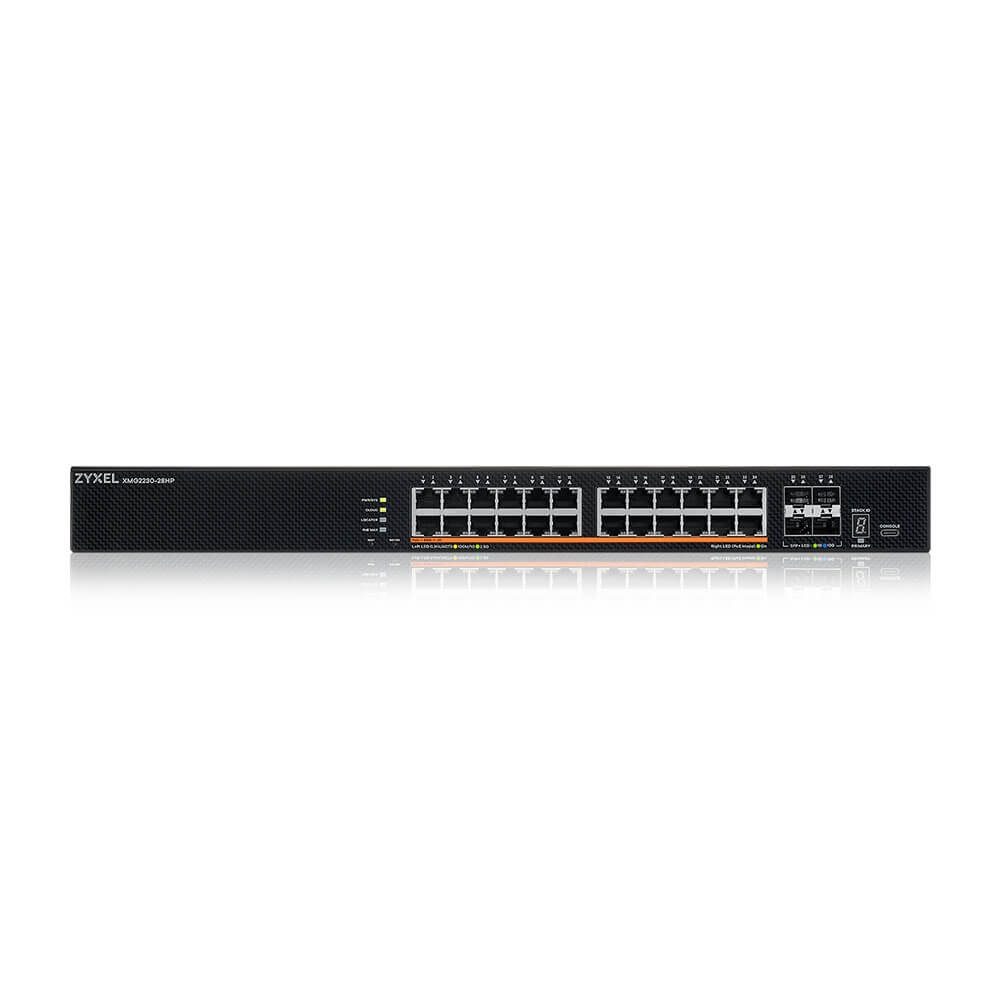

ZyXEL XMG2230-28HP L3 Access Switch, 24x 2.5G PoE, 4x SFP+ Uplink, вкл. 1 год. NebulaFlex Pro

Name: ZyXEL XMG2230-28HP L3 Access Switch, 24x 2.5G PoE, 4x SFP+ Uplink, вкл. 1 год. NebulaFlex Pro
Brand: ZyXEL
Price: 1081.05 EUR
Availability: InStock

€1 081,05

L3 Access Switch with 24x 2.5G PoE ports, 4x SFP+ uplinks, dual AC/DC power, and 1-year NebulaFlex Pro license.

Доставка по заявка

Доставка до 30 работни дни

с Econt / Speedy / BOXNOW · безплатна над €100,00

Доставка по заявка

Описание

The growing demand for higher wireless bandwidth in small and medium-sized enterprises (SMEs) continues to drive wireless technology forward. With WiFi 7 reaching speeds up to 2.5Gbps and more, a stable infrastructure is essential. Introducing the XMG2230 series – a line of Multi-Gig Layer 3 Access PoE switches, available in models with 28 and 52 ports. The XMG2230-28HP features PoE-compatible 2.5G Multi-Gig ports, while the XMG2230-52HP offers a combination of Gigabit and 2.5G PoE ports. Both models include four additional 10G SFP+ optical uplinks for high-speed connectivity. In addition, the unique dual power options – AC and DC – ensure a reliable wired infrastructure for WiFi 7.

Specifications

Power Over Ethernet (PoE)	24x IEEE 802.3bt PoE++ (60W) (Port 1 ~ Port 24 (100M/1G/2.5G)); Total PoE budget (W): Internal AC input: 700W, External DC input: 1440W
Management	Support NebulaFlex Pro for hybrid mode, Standalone management by Web interface, Cloud management by Nebula Control Center, Auto configuration recovery (only for cloud mode), Networked AV mode by Web Interface, iStacking, DHCP; CLI and etc.
VLAN (number, standards)	802.1Q static VLANs/dynamic VLANs: 4K/4K; Port-based VLAN, VLAN isolation, Vendor ID based/Protocol-based/IP subnet-based/MAC-based/Private/Voice VLAN; Independent VLAN Learning (IVL); VLAN Translation/trunking/mapping; IEEE 802.1AD VLAN stacking (QinQ)
QoS	No. of hardware queues per port: 8/6; Storm control and event log: Broadcast, multicast, unknown unicast (DLF); Port-based rate limiting (ingress/egress); Rate limiting per IP/TCP/UDP per port; 802.1p CoS (SPQ, WFQ, WRR, hybrid-SPQ combination capable)
IPv6 functionality	IPv6 over Ethernet; IPv6 addressing architecture, Dual stack; ICMPv6; Path MTU; Minimum path MTU size of 1280; Encapsulation for maximum PMTU of 1500; Neighbor discovery; DHCPv6 snooping; IPv6 binding-static/dynamic; Extend Radius server; Extension for DHCPv6 relay
Security	Port security; L2 MAC filtering; L3 IP filtering; L4 TCP/UDP socket filtering; Static MAC forwarding; Multiple RADIUS servers; Multiple TACACS+ servers; 802.1x VLAN and 802.1p assignment by RADIUS; TACACS+; RADIUS; SSH; SSL; DHCP; ARP
Other	Rack mounting kit included; incl. 1 yr NebulaFlex Pro; Managability: SNMP v1, v2c, v3; SNMP trap group; RMON (1, 2, 3, 9); ICMP echo/echo reply; Syslog; Display port utilization

Спецификации

Warranty: 60 месеца
Опция за монтаж: Rackmount
Общ брой портове: 28
Вентилатори: 1 x smart fan
Пропускателна способност, Mpps: 148.8 Mpps
Тип суич: Fixed Port, Layer 3 Access
Памет (Flash, RAM): 64 MB/1 GB (Flash/RAM)
MAC адреси: 32 K
Капацитет за маршрутизиране/превключване, Gbps: 200 Gbps
Размери (Ш, Д, В), mm: 441 x 330 x 44 mm
Тип основни портове: 24x 100M/1G/2.5G
Uplink портове: 4x 10 Gigabit SFP+
Захранване: 100-240V AC, 50/60Hz 50-57V DC
Маршрутизиране: Статична; Статични маршрути (IPv4/IPv6): 64/64; DHCP реле
L2 мрежови стандарти: IEEE 802.3z, IEEE 802.3ab/an/bz/ae/az
L3 мрежови стандарти: RFC 2464, RFC 4291, RFC 4213; RFC 4443; RFC 1981, RFC 5095; RFC 4861
MPN: XMG2230-28HP-ZZ0101F
