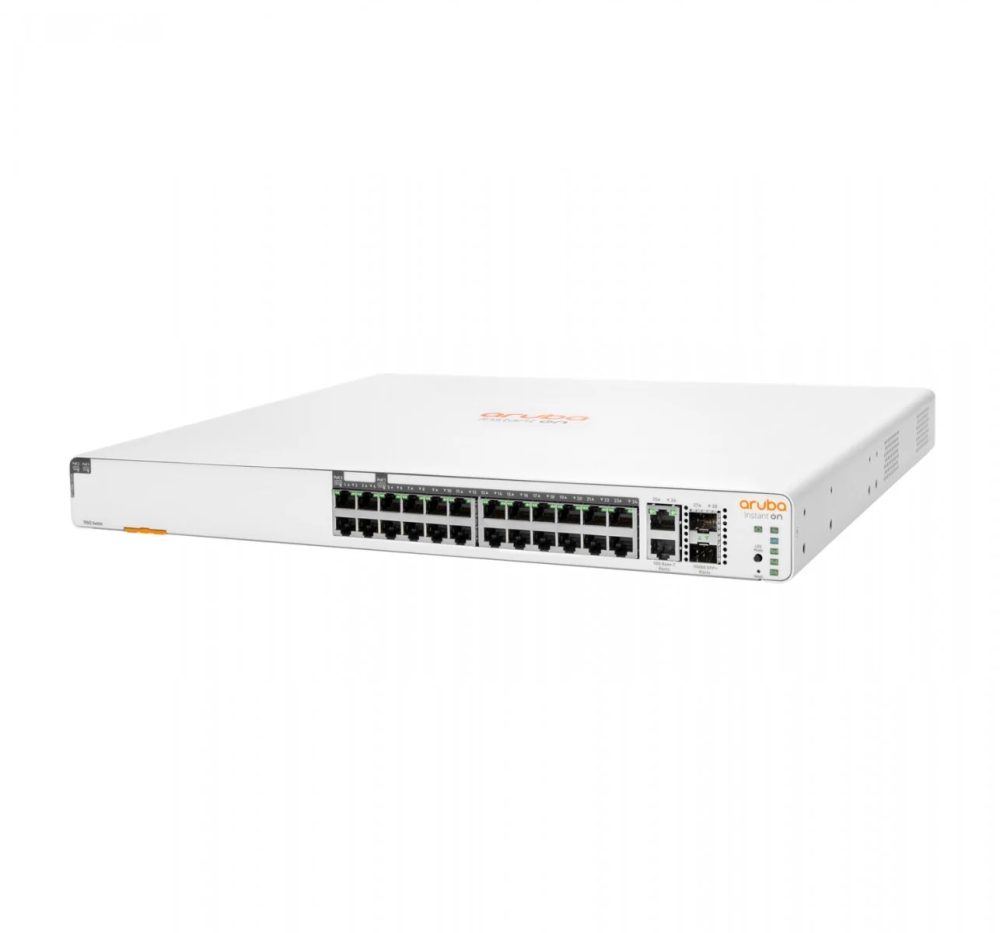

HPE Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960
€2 293,36
Доставка по заявка
HPE Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960
€2 293,36
Доставка до 30 работни дни
с Econt / Speedy / BOXNOW · безплатна над €100,00
Доставка по заявка
Описание
Specifications
| Power Over Ethernet (PoE) | IEEE 802.2af, IEEE 802.2at, IEEE 802.2bt; Total 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE) |
| Power supply | Internal power supply: 100 - 127/200 - 240 VAC; Maximum power rating: 500/480 W, Current: 5.0A/0.4A; Frequency: 50/60 Hz |
| VLAN (number, standards) | IEEE 802.1Q VLANs; VLAN support - Offers some of the benefits of both bridging and routing. VLANs partition the network into logical segments, which provide better administration, security, and multicast traffic management; Auto voice VLAN |
| QoS | Traffic prioritization - provides time-sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or 802.1p classification. Sets the 802.1p/DSCP priority to queue mapping (8 queues). Supports SP or WRR queuing. |
| L2 network standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.1X, IEEE 802.3az, IEEE 802.1D, IEEE 802.1W, IEEE 802.1S, IEEE 802.1AB, IEEE 802.1t, IEEE 802.3ac, IEEE 802.2af/at/bt |
| L3 network standards | Supports IPv4 static routing for up to 32 static routes and 8 VLAN routing interfaces on the access switch models and up to 512 static routes and 32 VLAN routing interfaces on aggregation model. |
| IPv6 functionality | IPv6 Host mode - Enables switches to be managed and deployed at the IPv6 network’s edge, IPv6 routing, IPv6 DHCP relay |
| Security | TPM, RADIUS, Automatic VLAN assignment — RADIUS assigned VLANs, Port access control, Port security, ARP attack prevention, Automatic denial-of-service protection, Global Storm Control |
Спецификации
- Гаранция
- 99 месеца
- Свободни (10GB) слотове
- Не
- Опция за монтаж
- Desktop/Rackmount
- Тип основни портове
- 24x10/100/1000Base-T
- MAC адреси
- 16000 размер на MAC адресната таблица
- Общ брой портове
- 28
- Тип суич
- Fixed Port, Smart Managed
- Капацитет за превключване, Gbps
- 128 Gbps
- Управление
- Aruba Instant On Cloud; Web browser; SNMP Manager
- Вентилатори
- Вентилатори с променлива скорост
- Uplink портове
- 2x SFP+ 10GbE ports, 2x 10GBASE-T ports
- Стекируем
- True stacking, Hybrid stacking, Cloud-managed stacking
- Маршрутизиране
- Layer 3 IPv4 static routing
- Памет (Flash, RAM)
- 1GB DDR3; 512MB NAND flash; Packet buffer size: 1.5 MB
- Пропускателна способност, Mpps
- 95 Mpps
- Размери (Ш, Д, В), mm
- 442.5 x 350.5 x 44
- MPN
- JL807A
- EAN
- 0190017521558
