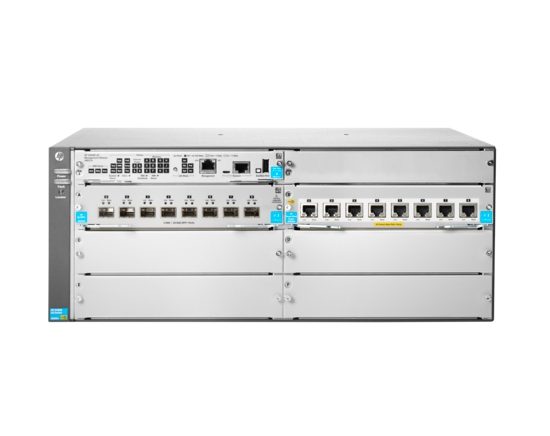

HPE Aruba Networking 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8 port SFP+ (No PSU) v3 zl2 Switch

Name: HPE Aruba Networking 5406R 8-port 1/2.5/5/10GBASE-T PoE+ / 8 port SFP+ (No PSU) v3 zl2 Switch
Brand: HPE
SKU: 0006302328882
Price: 22922.90 EUR
Availability: InStock

€22 922,90

Доставка по заявка

Доставка до 30 работни дни

с Econt / Speedy / BOXNOW · безплатна над €100,00

Доставка по заявка

Описание

Specifications

Free (10GB) slots	4 open module slot; Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HP Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination
Management	IMC—Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); SNMP Manager; Out-of-band management (serial rs-232c or micro usb)
VLAN (number, standards)	VLAN support and tagging: supports the IEEE 802.1Q standard and 2,048 VLANs simultaneously; IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically into their own VLANs
QoS	Advanced classifier-based QoS, Traffic prioritization, Bandwidth shaping, Class of service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
L2 network standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1X, IEEE 802.1AE, IEEE 802.3az
L3 network standards	Static IP routing: provides manually configured routing for both IPv4 and IPv6 networks, Routing Information Protocol (RIP): provides RIPv1 and RIPv2 routing, OSPF: provides OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing
IPv6 functionality	IPv6 host: Enables switches to be managed in an IPv6 network; Dual stack (IPv4 and IPv6); IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic; IPv6 routing: supports static and OSPFv3 routing protocols
Security	Switch CPU protection: provides automatic protection against malicious network traffic trying to shut down the switch; Virus throttling: detects traffic patterns typical of WORM-type viruses

Спецификации

Warranty: 99 месеца
Общ брой портове: 16
Стекируем: да
Маршрутизиране: Layer 3 Advanced
Uplink портове: 8x10GE SFP+
Тип суич: Модулен
Вентилатори: 1 слот за вентилатор (включва: 1 x J9831A)
Захранване: 2 слота за захранване - минимум 1 захранване е необходимо (поръчва се отделно)
Памет (Flash, RAM): Flash памет: 16 MB, RAM: 4 GB DDR3 SODIMM
Пропускателна способност, Mpps: 571.4 Mpps
MAC адреси: Размер на MAC таблицата 64000 адреса
Размери (Ш, Д, В), mm: 445 x 451 x 175
Опция за монтаж: Rackmount, 4U Rack
Капацитет за превключване, Gbps: 960 Gbps
Power Over Ethernet (PoE): IEEE 802.3at Power over Ethernet Plus: осигурява до 30 W на порт
Тип основни портове: 8x10GBase-T
SKU: 0006302328882
MPN: JL002A
