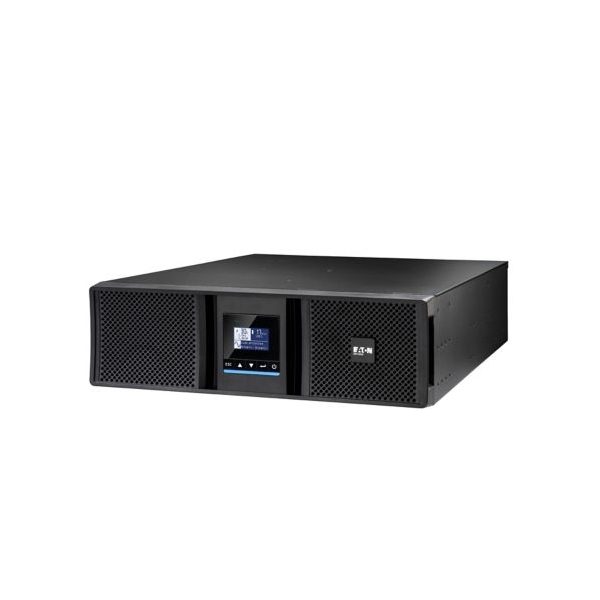

Eaton 9SX 6000i RT3U G2 Непрекъсваем ТЗИ
Описание
Eaton 9SX 6000i RT3U G2 is an online double conversion UPS with Power Factor Correction (PFC) system. It provides 6kVA/6kW output power. The unit features 12 outlets: 1x Hardwired + 8x IEC C13 + 3x IEC C19. It includes a hardwired/fixed input connection, communication ports (USB port HID compliant, serial port RS232), and 1 slot for Network-M3, INDGW-M2, INDRELAY-MS or Relay-MS. The battery is sealed lead-acid, hot-swappable internal batteries and extended battery modules (EBMs), battery configuration: 15 x 5Ah. Protections include internal bypass, auto shutdown function, surge protection with EMI and RFI filters. Standards: IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM, KCC, BSMI. Dimensions: 440 x 130 x 684 mm (19", 3U). Warranty: 24 months.
Specifications
| Outlet type | 1x Hardwired + 8x IEC C13 + 3x IEC C19; Hardwired/fixed input connection; Communication ports: USB port (HID compliant); Serial port (RS232); 1 slot for Network-M3, INDGW-M2, INDRELAY-MS or Relay-MS |
| Battery type | Sealed, lead-acid; Hot-swappable internal batteries and extended battery modules (EBMs); Battery Configuration: 15 x 5Ah |
| Standards | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM, KCC, BSMI |
Спецификации
- Гаранция
- 24 месеца
- Вх.напрежение, V
- 230V по подразбиране (200/208/220/230/240V)
- Технология
- Онлайн двойно преобразуване с корекция на фактора на мощността (PFC)
- Брой гнезда
- 12
- Предпазни функции
- ВЪТРЕШЕН БАЙПАС, ФУНКЦИЯ ЗА АВТОМАТИЧНО ИЗКЛЮЧВАНЕ; Защита от пренапрежение: EMI, RFI филтри
- Изх. мощност, VA
- 6kVA/6kW
- Други
- 440 x 130 x 684 mm (19", 3U)
- MPN
- 9SX6KIRT3UG2
