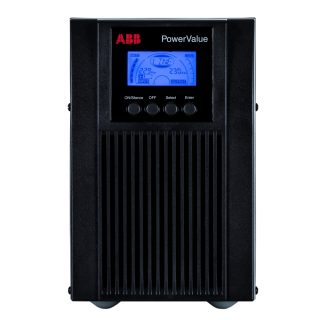

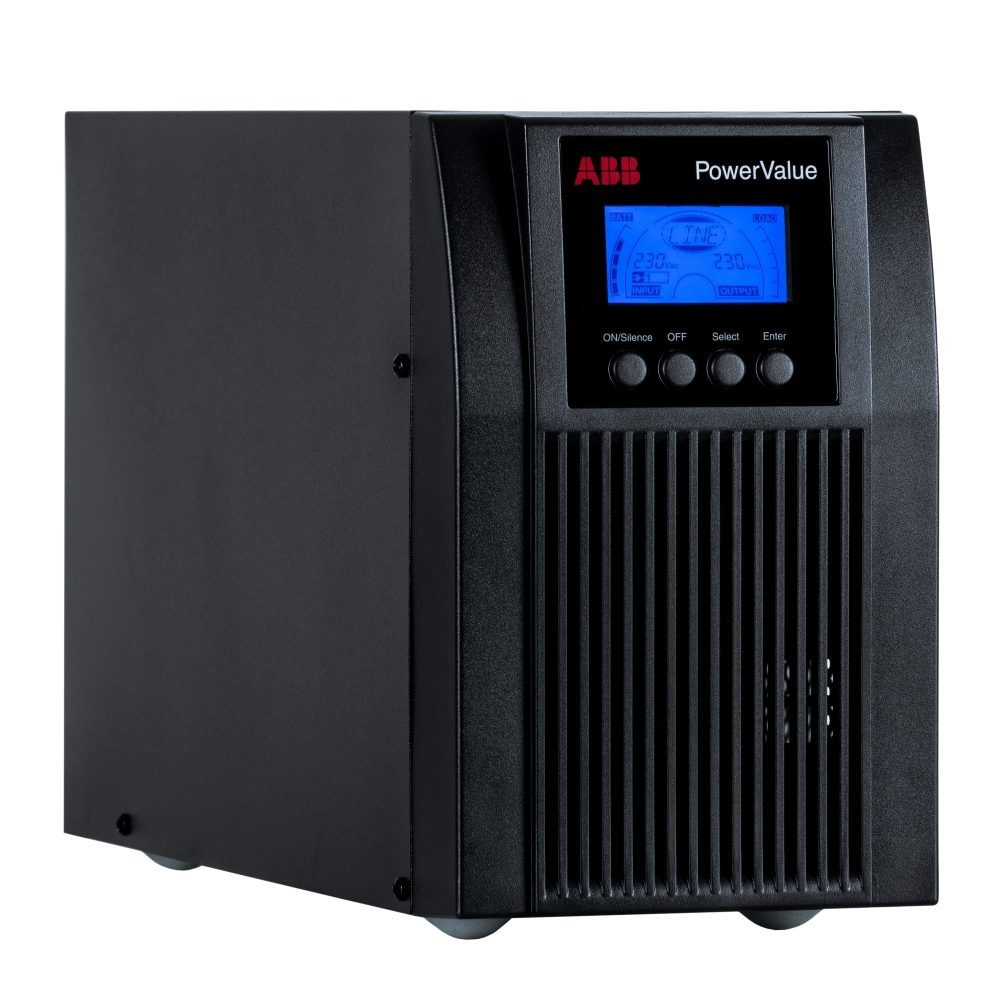

ABB Power Value 11T G2 1KVA B UPS

The ABB Power Value 11T G2 is a single-phase input/output UPS with double online conversion and continuous power up to 10 kW per UPS, helping to secure critical loads. Applications include server rooms, laboratories, sensitive electronics, ATM devices, and more, while filtering input voltage from unwanted spikes, sags, harmonics, etc.

The voltage and frequency independent (VFI) function reduces energy costs, with double conversion and efficiency up to 95% (up to 98% in ECO mode). Two or three units can be connected in parallel to reach maximum power of 30 kW with additional redundancy. Easy to install and low maintenance, Power Value 11T G2 is among the most compact UPSs on the market. The battery module (EBM) allows extended autonomy up to 2 hours. Each battery module is designed for a specific UPS model, with easy settings and startup via LCD display.

High reliability: double conversion topology protects the load from all incoming mains disturbances; parallel operation of up to 3 UPSs (6-10 kVA only) with additional redundancy; easy battery addition or replacement; wide voltage range.

Low TCO: various autonomy times; high efficiency regardless of load; reduced installation costs; compact design; output power factor 1.0 (6-10 kVA only).

Flexible design: multiple connection options; parallel operation of up to 4 UPSs for extended autonomy; models with extended autonomy available; efficient service concept; manual bypass switch (6-10 kVA only); easy installation and maintenance (plug and play); easy-to-use display; remote monitoring and communication options.

Power Value 11T G2, with its unique technology and cost-effective value, makes this UPS series one of the most sought-after and meeting all customer needs. The series is designed for small server rooms with low power, laboratories with critical and sensitive equipment, and security installations.

The ABB Power Value 11 G2 UPS series has compact dimensions and double online conversion function, helping to regulate critical loads with power factor up to 1.0 (kVA = kW). Thus Power Value 11T G2 provides up to 11% more active power than any other UPS with power factor 0.9. This type of UPS optimizes the customer's energy budget through double conversion capability and efficiency up to 95% (up to 98% in ECO mode). Low input line disturbances: PF ≥ 0.995 @ 100% linear load, THDi < 3%. Flexible configuration for setting autonomy time: UPS and EBM with/without batteries (extended redundancy). Adjustable battery voltage and charge. Digital charging technology ensures precise adjustment. The UPS is delivered with built-in parallel board and cables, no additional hardware required for setup. The series comes with standard warranty and attractive value.

UPS configuration: Standard: Free-standing IP20; Single-phase input/output; Online double conversion; Parallel operation of up to 3 UPSs, allowing capacity increase to 30 kW or additional redundancy/protection (6-10 kVA only); LCD; Wide frequency range; Built-in batteries (B/B2 versions); Maintenance bypass (6-10 kVA only); Easy assembly and installation.

Options: Additional battery cabinet (EBM); SNMP, ModBus and AS400 network cards for remote monitoring of the UPS via web browser; Sensors combined with the network card providing environmental, humidity and temperature status; Link functionality via Win Power SNMP (network management card), mini SNMP.
