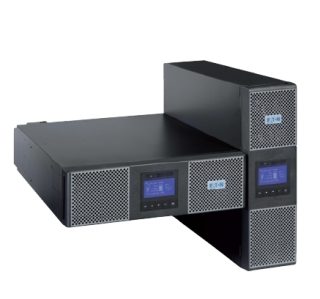

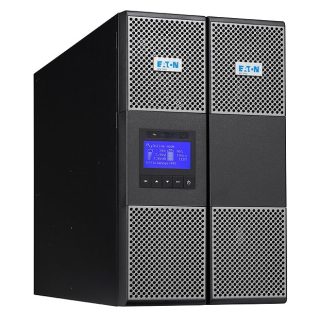

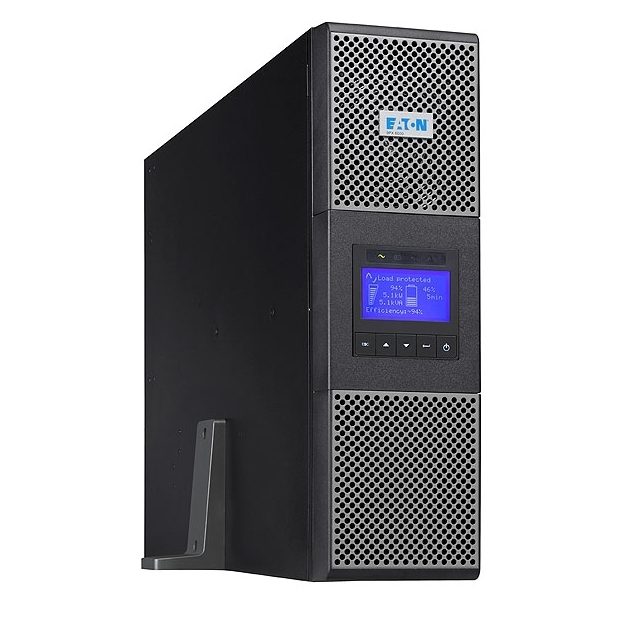

Eaton 9PX 5000i RT3U Netpack
Описание
Eaton 9PX 5000i RT3U Netpack is an online double conversion UPS with Power Factor Correction (PFC) system. It provides 5000 VA output power and features 11 outlets: terminal block plus 2 controlled groups of 4 IEC C13 (10A) and 2 IEC C19 (16A). The UPS includes sealed, lead-acid batteries (12 V / 5 Ah) with hot-swappable internal batteries and extended battery modules (EBMs). Protection features include internal bypass, auto shutdown function, and deep discharge protection. It complies with UL 1778, IEC/EN 62040-1, IEC/EN 62040-2, CE, and EAC standards. Communication ports include 1 USB port, 1 RS232 serial port (USB and RS232 cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off, 1 for remote power Off, and 1 DB15 for parallel operation. Warranty: 24 months.
Specifications
| Battery type | Sealed, lead-acid (12 V / 5 Ah); Hot-swappable internal batteries and extended battery modules (EBMs) |
| Other | Communication ports: 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation. |
Спецификации
- Гаранция
- 24 месеца
- Изх. мощност, VA
- 5000 VA
- Технология
- Онлайн двойно преобразуване с корекция на фактора на мощността (PFC)
- Вх.напрежение, V
- 176-276V без деротиране (до 100-276V с деротиране)
- Брой гнезда
- 11
- Тип изводи
- Клеморед + 2 управляеми групи от 4 IEC C13 (10A) + 2 IEC C19 (16A)
- Предпазни функции
- Вътрешен байпас, автоматично изключване, защита от дълбоко разреждане
- Стандарти
- UL 1778, IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
- MPN
- 9PX5KIRTN
