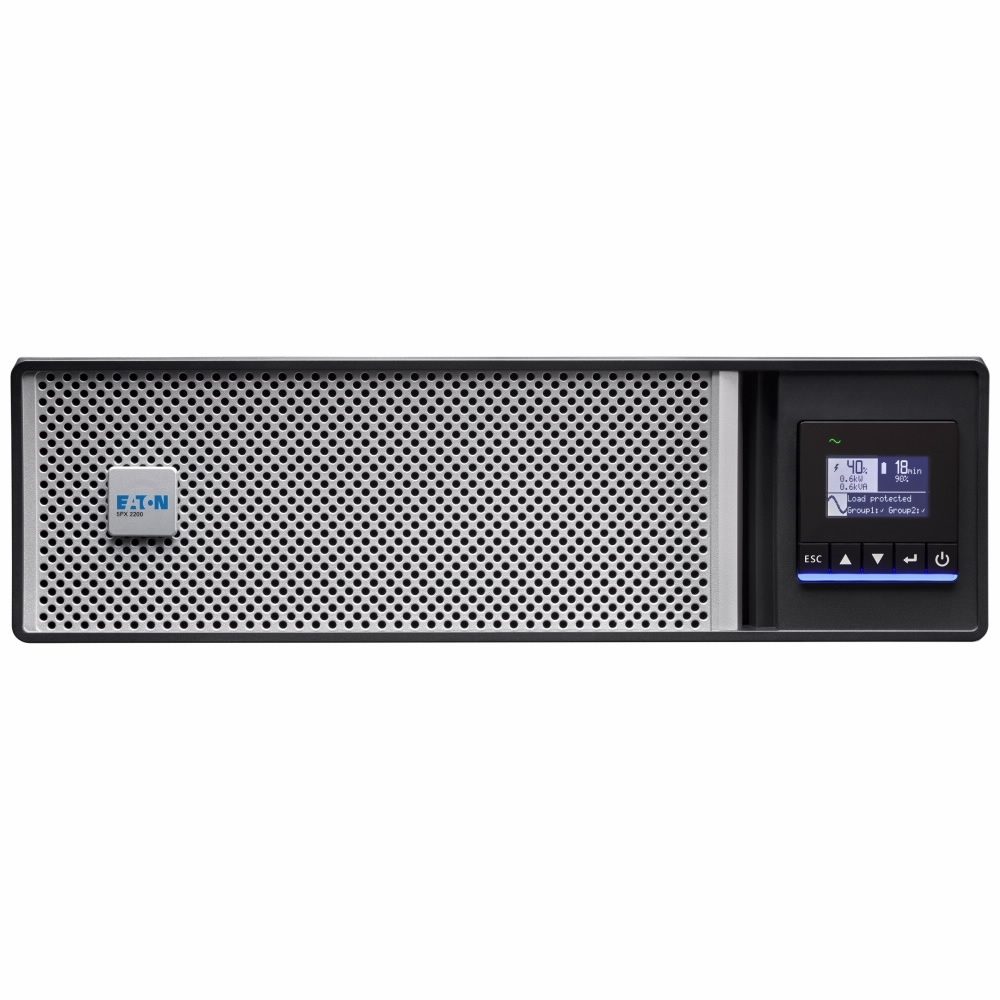

Eaton 5PX 3000i RT3U G2
Описание
Eaton 5PX 3000i RT3U G2 is a line-interactive uninterruptible power supply (UPS) with 3000VA/3000W output power. It features 10 outlets (8 x IEC C13 10A + 2 x IEC C19 16A) and an input of IEC C20 (16A). The UPS uses a replaceable lead-acid maintenance-free battery, supports an input voltage range of 160V-294V (adjustable to 150V-294V), and includes protections such as Eaton Intelligent Power Manager and Eaton Intelligent Power Protector. It conforms to standards including IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, RoHS, REACH, UL 1778, and CSA 22.2. Other features include AVR, 1 slot for optional communication card, 1 USB port, 1 serial port, and mini-terminal blocks for remote ON/OFF, remote power off, and output relay. Warranty: 24 months.
Specifications
| Standards | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, RoHS Compliant, REACH, UL 1778, CSA 22.2 |
| Other | AVR; 1 slot for optional com card (Network management card, Relay card or Network and Industrial card), 1 USB port+1 serial port+1 mini-terminal block for Remote ON/OFF+1 mini-terminal block for Remote Power OFF+1 mini-terminal block for output relay |
Спецификации
- Гаранция
- 24 месеца
- Технология
- Линеен интерактивен
- Брой гнезда
- 10
- Вх.напрежение, V
- 160V-294V (регулируемо до 150V-294V)
- Тип батерия
- Оловно-киселинна без поддръжка (сменяема)
- Предпазни функции
- Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
- Изх. мощност, VA
- 3000VA/3000W
- Тип изводи
- 8 x IEC C13 (10A), 2 x IEC C19 (16A); Вход: IEC C20 (16A)
- MPN
- 5PX3000IRT3UG2
