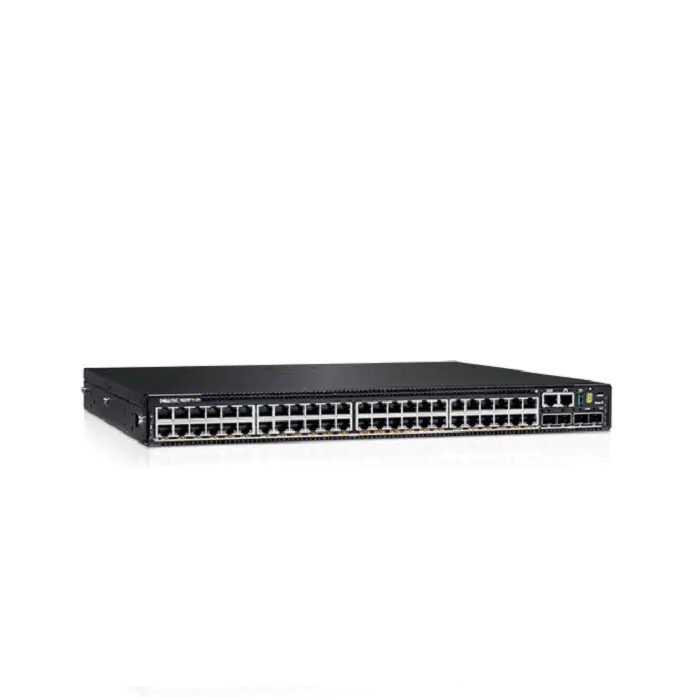

Dell EMC PowerSwitch N3248PXE-ON, 48x1/2.5/5/10G RJ-45, 4x25G SFP28, 2x100G QSFP28, PoE 90W, 1xAC PSU, IO/PS, OS6, Lifetime Limited Hardware Warranty
€12 708,00
Доставка по заявка
Dell EMC PowerSwitch N3248PXE-ON, 48x1/2.5/5/10G RJ-45, 4x25G SFP28, 2x100G QSFP28, PoE 90W, 1xAC PSU, IO/PS, OS6, Lifetime Limited Hardware Warranty
€12 708,00
Доставка до 30 работни дни
с Econt / Speedy / BOXNOW · безплатна над €100,00
Доставка по заявка
Описание
Specifications
| Routing | Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6); Dynamic routes: 8158 (IPv4)/4096 (IPv6); RIP routing interfaces: 512, VLAN routing interfaces: 128) |
| VLAN (number, standards) | Private VLAN extensions and Private VLAN Edge support; VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24 |
| QoS | DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM |
| L2 network standards | 802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at, 802.3bt |
| IPv6 functionality | Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3 |
| Other | 1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port; Two-core Denverton-NS CPU |
Спецификации
- Гаранция
- 99 месеца
- Тип суич
- Fixed Port
- Свободни (10GB) слотове
- -
- Опция за монтаж
- Rackmount
- Общ брой портове
- 54
- Вентилатори
- Резервируеми вентилатори с променлива скорост
- Управление
- CLI, Web, SNMP; 1x 10/100/1000BaseT Ethernet management port
- Стекируем
- 2x 100G QSFP28
- Памет (Flash, RAM)
- 4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD
- MAC адреси
- 32K
- L3 мрежови стандарти
- RIP, OSPF, VRRP, MIB
- Сигурност
- RADIUS, TACACS+, 802.1x
- Размери (Ш, Д, В), mm
- 434 x 400 x 43.5 mm
- Power Over Ethernet (PoE)
- 802.3bt Type-4 (90W) PoE
- Uplink портове
- 4x 25G SFP28
- Капацитет за маршрутизиране/превключване, Gbps
- 1560 Gbps
- Пропускателна способност, Mpps
- 2167 Mpps
- Тип основни портове
- 48x10GBase-T
- Захранване
- 1x 1600W AC PSU
- MPN
- DNN3248PXE
