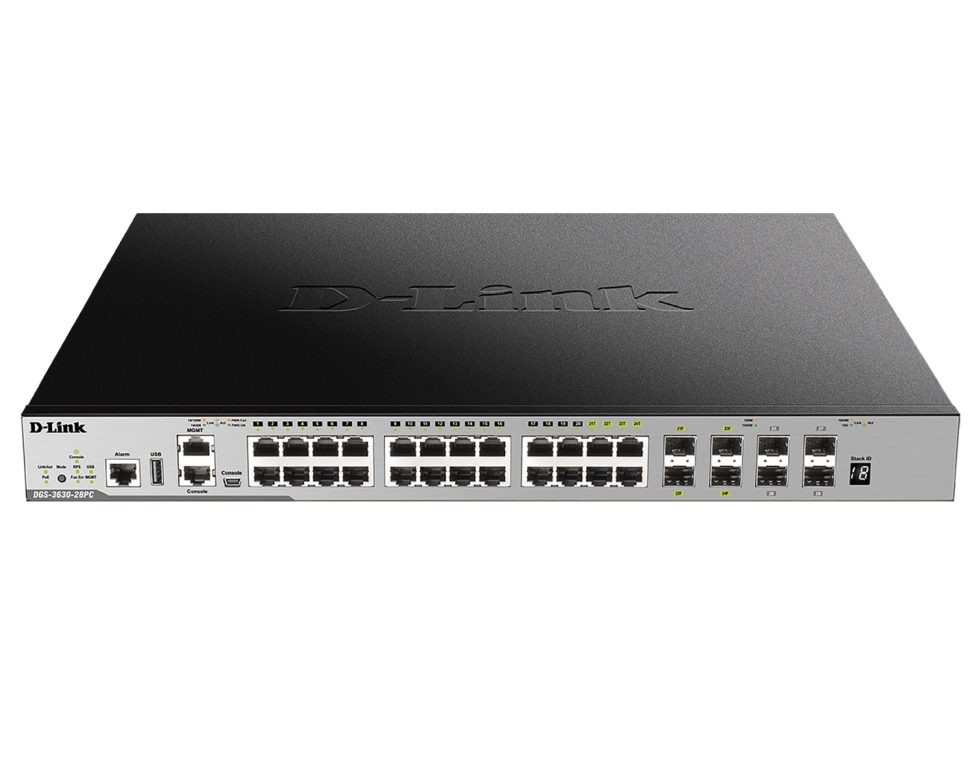

D-Link 20-портов GE PoE 370W Layer 3 Stackable Managed Gigabit Switch including 4-port Combo

Name: D-Link 20-портов GE PoE 370W Layer 3 Stackable Managed Gigabit Switch including 4-port Combo
Brand: D-Link
SKU: DGS-3630-28PC/SI
Price: 3514.63 EUR
Availability: InStock

€3 514,63

D-Link 20-port GE PoE managed switch with 370W PoE budget, 4 combo ports, Layer 3 routing, and 99-month warranty.

Доставка по заявка

Доставка до 30 работни дни

с Econt / Speedy / BOXNOW · безплатна над €100,00

Доставка по заявка

Описание

D-Link 20-port GE PoE 370W Layer 3 Stackable Managed Gigabit Switch including 4-port Combo. This switch features 28 ports total, with 20x10/100/1000Base-T ports, 4 dual personality uplink ports and 4x10GE SFP. It supports Power over Ethernet (IEEE 802.3af/at PoE Standards) with a PoE Power Budget of 370 W (740 W with DPS-700 RPS redundant power supply). The switch is stackable with physical stacking up to 80 Gbps stacking bandwidth, up to 9 switches in a stack, and ring/chain topology support. It supports Layer 3 RIP routing. The switching capacity is 128 Gbps and the forwarding rate is 95.24 Mpps. It has a MAC address table size of 68000. The switch comes with a 99-month warranty.

Specifications

Power Over Ethernet (PoE)	IEEE 802.3af/at PoE Standards; PoE Power Budget: 370 W (740 W with DPS-700 RPS redundant power supply)
Управление	Web-based GUI, Command Line Interface (CLI), Telnet Server, Telnet Client, SNMP v1/v2c/v3, SNMP Trap, TFTP, FTP, RCP, SMTP, RMONv1 (Supports 1,2,3,9 groups), RMONv2 (Supports ProbeConfig group), D-Link Discover Protocol (DDP), sFlow, Debug Command
Stackable	Physical Stacking: Up to 80 Gbps stacking bandwidth, Up to 9 switches in a stack, Ring/chain topology support; Virtual Stacking/Clustering of up to 32 units: Supports D-Link Single IP Management, Up to 20 Gbps stacking bandwidth
VLAN (брой, стандарти)	VLAN Group: Max. 4K VLAN groups, Max. 4094 VIDs; Multicast VLAN (ISM VLAN for IPv4/IPv6); Voice VLAN; Auto Surveillance VLAN; VLAN Trunking; GVRP: Up to 4K dynamic VLANs; Asymmetric VLAN; 802.1Q; 802.1v Protocol-based VLAN; Double VLAN; Private VLAN
QoS	802.1p, 8 queues per port, Queue Handling (Strict Priority (SP), Weighted Round Robin (WRR), Strict + WRR, Weighted Deficit Round Robin (WDRR)), Congestion Control, 802.1Qbb Priority-based Flow Control (PFC) for 10 GbE port, Bandwidth Control, Policy Map
L2 мрежови стандарти	IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1p, IEEE 802.1v, IEEE 802.1AX, IEEE 802.1ak, IEEE 802.3af, IEEE 802.3at
L3 мрежови стандарти	Static Route: Max. 512 IPv4 entries, Max. 256 IPv6 entries; IPv4/IPv6 Default Route; BFD (Bidirectional Forwarding Detection) - IPv4/v6 Static Route, RIP, VRRP; RIPv1/v2/ng
Сигурност	Port Security, Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, IPv6 Snooping, Dynamic ARP Inspection (DAI), SSL, SSH, BPDU Attack Prevention
Други	RJ45 and Mini USB console ports for out-of-band CLI management, 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management, 1 RJ-45 port Alarm port, 1 USB 2.0 Type A port, Stacking cable and USB flash card not included

Спецификации

Гаранция: 99 месеца
Суич, тип: Fixed Port
Свободни (10GB) слотове: Не
Памет (Flash, RAM): -
Опция за монтаж: Rackmount
Общ брой портове: 28
Капацитет за маршрутизиране/превключване, Gbps: 128 Gbps
Пропускателна способност, Mpps: 95.24 Mpps
Uplink портове: 4 dual personality, 4x10GE SFP
Основни портове, тип: 20x10/100/1000Base-T
Маршрутизиране: Layer 3 RIP
MAC адреси: 68000 MAC address table size
IPv6 функционалност: IPv6 Tunnelling: Static, ISATAP, GRE, 6to4; IPv6 Traffic Class; IPv6 Flow Label
Вентилатори: 4 x smart вентилатора
Захранване: Захранване: 100 до 240 VAC 50/60 Hz, Опционално резервно захранване: DPS-700
Размери (Ш, Д, В), mm: 441 x 380 x 44 mm
SKU: DGS-3630-28PC/SI
MPN: DGS-3630-28PC/SI
