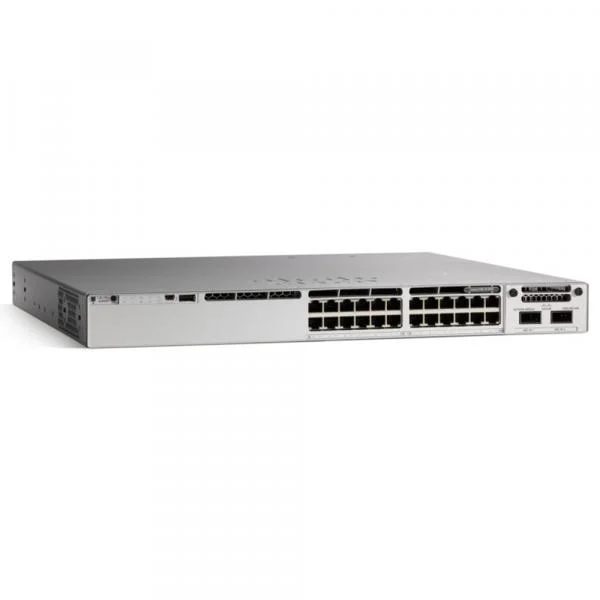

Cisco Catalyst 9300 24-port UPoE+, Network Essentials
Описание
Switch, Cisco Catalyst 9300 24-port UPoE+, Network Essentials. Modular switch with 24 ports of 10/100/1000Base-T, Cisco UPOE+ (90W per port) & IEEE 802.3bt type 4 on 21 ports. Modular uplinks. Cloud management and monitoring; WebUI. Designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 448 access ports. Three field-replaceable fans and support (N+1) redundancy. Redundant; Default AC power supply: 1100W AC. High-Performance IP routing; Total routed ports: 448. DRAM: 8 GB; Flash: 16 GB; Packet buffer per SKU: 16 MB buffer for 24-or 48-port Gigabit Ethernet models. Switching capacity: 208 Gbps, with stacking: 688 Gbps. Forwarding rate: 154.76 Mpps; with stacking: 511.90 Mpps. MAC addresses: 32,000. VLAN IDs: 4094; IEEE 802.1Q VLAN. QoS scale entries: 5,120; Superior QoS (802.1p Class of Service (CoS), DSCP, SRR, CIR). L2 network standards: IEEE 802.3 ab/z/bz/an/x. L3 network standards: IEEE 802.1D, RMON I and II standards, SNMPv1, v2c, and v3. IPv6 routing entries: 16,000. Security: ETA, SUDI, AES-256 MACsec encryption, IPsec encryption, Trustworthy solutions built with Cisco Trust Anchor Technologies; Cloud Security: Umbrella DNS Integration, ASAc. Dimensions: 445 x 409 x 44 mm. Rackmount. Network Essentials. Warranty: 99 months.
Specifications
| Power Over Ethernet (PoE) | Cisco UPOE+ (90W per port) & IEEE 802.3bt type 4 on 21 ports (24-port and 48-port switch) |
| Stackable | Designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 448 access ports. |
| Memory (Flash, RAM) | DRAM: 8 GB; Flash: 16 GB; Packet buffer per SKU: 16 MB buffer for 24-or 48-port Gigabit Ethernet models |
| QoS | QoS scale entries: 5,120; Superior QoS (802.1p Class of Service (CoS), DSCP, SRR, CIR) |
| Security | ETA, SUDI, AES-256 MACsec encryption, IPsec encryption, Trustworthy solutions built with Cisco Trust Anchor Technologies; Cloud Security: Umbrella DNS Integration, ASAc |
Спецификации
- Warranty
- 99 месеца
- Свободни (10GB) слотове
- -
- Общ брой портове
- 24
- Опция за монтаж
- Rackmount
- Тип основни портове
- 10/100/1000Base-T
- Вентилатори
- три полева-заменяеми вентилатора и поддръжка (N+1) резервиране
- VLAN (брой, стандарти)
- VLAN ID: 4094; IEEE 802.1Q VLAN
- MAC адреси
- 32 000
- Тип суич
- Модулен
- Uplink портове
- Модулни Uplinks
- Управление
- Cloud управление и мониторинг; WebUI
- Захранване
- Резервирано; Стандартно AC захранване:1100W AC
- Маршрутизиране
- Високопроизводително IP маршрутизиране; Общо маршрутизирани портове: 448
- Капацитет за превключване, Gbps
- 208 Gbps, Капацитет за превключване със стакинг: 688 Gbps
- Пропускателна способност, Mpps
- 154.76 Mpps; Скорост на предаване със стакинг: 511.90 Mpps
- L2 мрежови стандарти
- IEEE 802.3 ab/z/bz/an/x
- L3 мрежови стандарти
- IEEE 802.1D, RMON I и II стандарти, SNMPv1, v2c и v3
- IPv6 функционалност
- IPv6 маршрутизиращи записи: 16,000
- Размери (Ш, Д, В), mm
- 445 x 409 x 44 mm
- Други
- Network Essentials
- MPN
- C9300-24H-E
