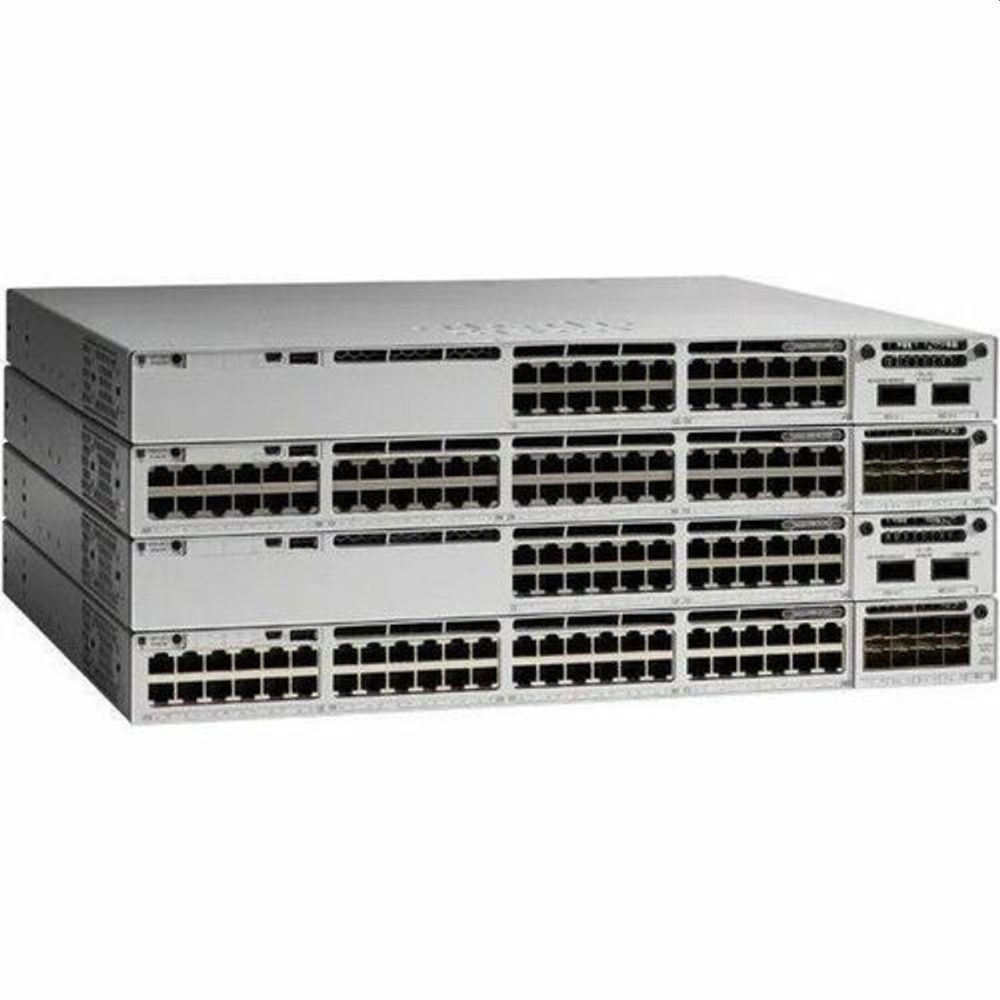

Cisco Catalyst 9300 24-port 10G/mGig copper with modular uplink, UPOE+, Network Essentials

Cisco Catalyst 9300 24-port 10G/mGig copper switch with modular uplink, UPOE+, Network Essentials. Modular switch type, 24 ports, 24x 10G Multigigabit (10G/5G/2.5G/1G/100M) main ports. Power over Ethernet: Cisco UPOE+ (90W per port) & IEEE 802.3bt type4 on 21 ports. Uplink ports: Modular Uplinks. Management: Cloud management and monitoring; WebUI. Stackable: designed for stacking switches as a single virtual switch, enabling customers to have a single management plane and control plane for up to 448 access ports. Fans: three field-replaceable fans and support (N+1) redundancy. Power supply: redundant; default AC power supply: 1100W AC. Routing: high-performance IP routing; total routed ports: 448. Memory: DRAM 8 GB; Flash 16 GB; packet buffer per SKU: 16 MB buffer for 24- or 48-port Gigabit Ethernet models. Switching capacity: 800 Gbps; with stacking: 1880 Gbps. Forwarding rate: 654.72 Mpps; with stacking: 1398.72 Mpps. MAC addresses: 32,000. VLAN IDs: 4094; IEEE 802.1Q VLAN. QoS scale entries: 5,120; superior QoS (802.1p Class of Service (CoS), DSCP, SRR, CIR). L2 standards: IEEE 802.3 ab/z/bz/an/x. L3 standards: IEEE 802.1D, RMON I and II standards, SNMPv1, v2c, and v3. IPv6 routing entries: 16,000. Security: ETA, SUDI, AES-256 MACsec encryption, IPsec encryption, Trustworthy solutions built with Cisco Trust Anchor Technologies; Cloud Security: Umbrella DNS Integration, ASAc. Dimensions: 445 x 446 x 44 mm. Mounting: rackmount. Other: Network Essentials. Warranty: 99 months.

Specifications
