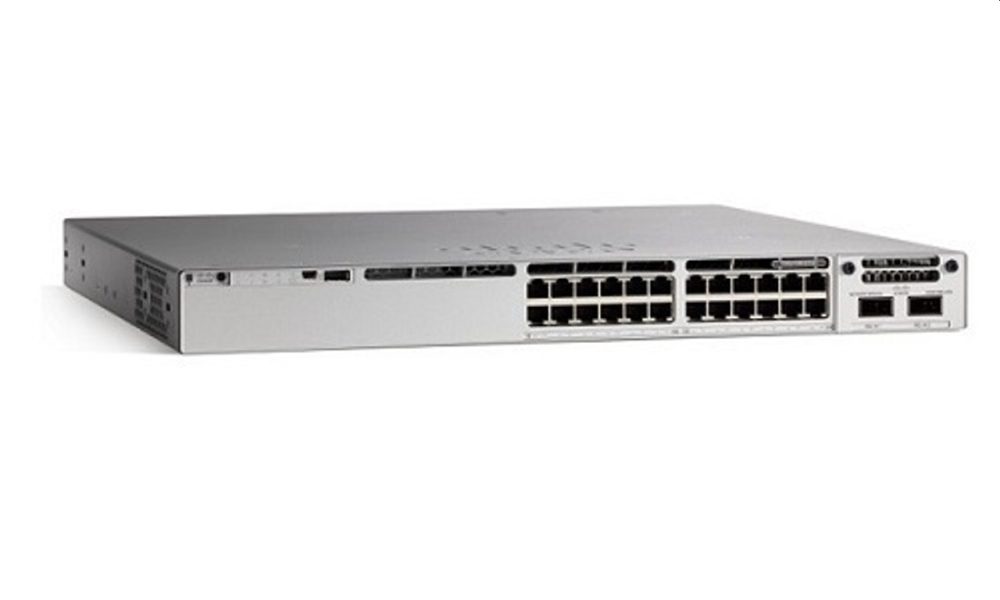

Cisco Catalyst 9200L 24-портов 8xmGig, 16x1G, 2x25G, PoE+, Network Essentials

Name: Cisco Catalyst 9200L 24-портов 8xmGig, 16x1G, 2x25G, PoE+, Network Essentials
Brand: Cisco
SKU: 0006307053568
Price: 8259.86 EUR
Availability: BackOrder

€8 259,86

Доставка по заявка

Доставка до 30 работни дни

с Econt / Speedy / BOXNOW · безплатна над €100,00

Доставка по заявка

Описание

Specifications

Power Over Ethernet (PoE)	IEEE 802.3at PoE+ (up to 30W per port); Available PoE power with single primary power supply (PWR-C5-600WAC): 370W
Management	WebUI is an embedded GUI-based device-management tool that provides the ability to provision the device, to simplify device deployment and manageability, and to enhance the user experience
VLAN (number, standards)	4; VLAN IDs: 4096; CISCO-PRIVATE-VLAN-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, IEEE 802.1Q VLAN
QoS	Superior QoS includes granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, SRR scheduling, Committed Information Rate (CIR), eight egress queues per port
L2 network standards	IEEE 802.1Q, IEEE 802.1D (STP); RSTP, IEEE 802.1w; MSTP, IEEE 802.1s; PVLAN; IEEE 802.3ad (LACP); LLDP; VTP; BPDU Guard
L3 network standards	IP Routing (Static, RIP, OSPF, EIGRP), VLAN Routing (SVI, Routing Between VLANs); Multicast Routing (PIM, IGMP); BGP; IPv6; HSRP; VRRP; GLBP; ACLs; PBR
IPv6 functionality	IPv6 routing entries: 2000; Ipv6 routing (using OSPFv3 and EIGRPv6); IPv6 addressing
Security	AES-128 MACsec encryption; Secure Segmentation with Software-Defined Access; Cloud Security - Umbrella Integration

Спецификации

Гаранция: 99 месеца
Тип суич: Fixed Port
Опция за монтаж: Rackmount
Общ брой портове: 26
Размери (Ш, Д, В), mm: 445 x 350 x 44 мм
Вентилатори: Фиксирани резервни
Маршрутизиране: Разширено
MAC адреси: 32 000
Стекируем: Стекова честотна лента: 160 Gbps
Памет (Flash, RAM): Flash: 4 GB; DRAM: 4 GB; Packet buffer: 12MB
Други: Network Essentials лиценз
Основни портове, тип: 24 порта full PoE+ (8 mGig порта до 10G, 16 порта до 1G)
Захранване: PWR-C5-600WAC
Uplink портове: 2x 1/10/25G фиксирани ъплинка
Капацитет за маршрутизиране/превключване, Gbps: 292 Gbps; Switch capacity with Stacking: 372 Gbps
Пропускателна способност, Mpps: 229.16 Mpps; Forwarding rate with Stacking: 277 Mpps
SKU: 0006307053568
MPN: C9200L-24PXG-2Y-E
