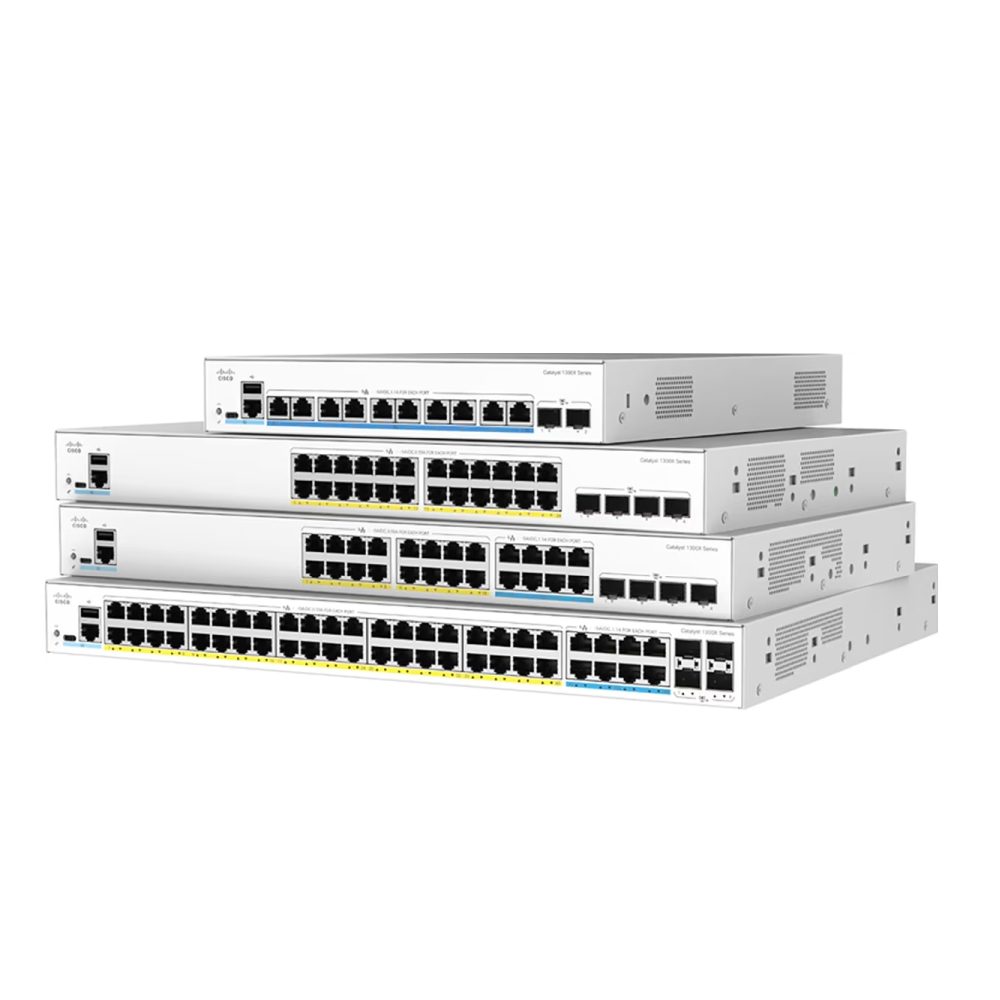

Cisco Catalyst 1300X 8-port 5GE, 40-port GE, UPoE, 4x10G SFP+ комутатор
Описание
Fixed Port switch with 40x 10/100/1000 30W PoE+ ports and 8x 5G 60W PoE++ ports. Supports Power over Ethernet 802.3bt (Type 3) PoE++ and 802.3at PoE+, with 740W dedicated to PoE and 48 PoE-capable ports. Uplink ports: 4x10G SFP28 (10G Uplink, 25G available for stacking only).
Management: Cisco Business Dashboard, Cisco Business mobile app, Cisco Network Plug and Play (PnP) agent, Web user interface, SNMP, MIB, RMON, RSPAN, sFlow agent, DHCP, SCP, and more. Stackable: supports up to 8 switches in a stack, up to 400 ports managed as a single system with hardware failover.
Routing: Dynamic Layer 3 routing. Switching capacity: 240 Gbps. Forwarding rate: 178.57 Mpps. MAC addresses: 16,000. VLAN support: up to 4093 VLANs simultaneously. QoS: 8 hardware queues, Strict priority and Weighted Round-Robin (WRR). Security: SSH v1 and v2, SCP, SSL, 802.1X, RADIUS, TACACS+, and more.
Dimensions: 444.3 x 340 x 43.94 mm. Rackmount option. Warranty: 99 months.
Specifications
| Power Over Ethernet (PoE) | 802.3bt (Type 3) PoE++ and 802.3at PoE+; Power dedicated to PoE: 740W; Number of ports that support PoE: 48 |
| Management | Cisco Business Dashboard; Cisco Business mobile app; Cisco Network Plug and Play (PnP) agent; Web user interface; SNMP; MIB; RMON; RSPAN; sFlow agent; DHCP; SCP; Other: Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS and etc. |
| Stackable | Supports up to 8 switches in a stack. Up to 400 ports managed as a single system with hardware failover |
| VLAN (number, standards) | Support for up to 4093 VLANs simultaneously; Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN; Management VLAN; Private/Guest/unauthenticated/Auto surveillance/CPE/Voice/Dynamic/Multicast TV VLAN |
| QoS | 8 hardware queues; Strict priority and Weighted Round-Robin (WRR); Class of service: Port-based, 802.1p VLAN priority-based, IPv4/IPv6 IP precedence/Type of Service (ToS)/DSCP-based; Queue assignment based on DSCP and Class of Service (802.1p/CoS); iSCSI |
| L2 network standards | IEEE 802.3, IEEE 802.3u/ab/ad/z/x/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC |
| IPv6 functionality | IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack IPv6 neighbor and router discovery (ND), IPv6 stateless address auto-configuration; DAD; IPv6 QoS;l ACL; First Hop Security; Multicast Listener Discovery (MLD v1/2) snooping; MLD |
| Security | SSH v1 and v2, SCP, SSL, 802.1X: RADIUS authentication and accounting; Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; Trustworthy systems; Private VLAN; Layer 2 isolation Private VLAN Edge; Port security; RADIUS/TACACS+; DoS prevention |
Спецификации
- Гаранция
- 99 месеца
- Тип суич
- Fixed Port
- Опция за монтаж
- Rackmount
- Общ брой портове
- 12
- Маршрутизиране
- Динамично Layer 3 маршрутизиране
- MAC адреси
- 16 000 адреса
- Захранване
- 100-240V 50-60 Hz, вградено, универсално
- Капацитет за превключване, Gbps
- 240 Gbps
- Пропускателна способност, Mpps
- 178.57 Mpps
- Размери (Ш, Д, В), mm
- 444.3 x 340 x 43.94 mm
- Тип основни портове
- 40x 10/100/1000 30W PoE+ порта + 8x 5G 60W PoE++ порта
- Uplink портове
- 4x10G SFP28 (10G Uplink, 25G само за стакинг)
- Вентилатори
- 2
- Памет (Flash, RAM)
- 1GB SLC (Flash), 2 GB DDR4 (DRAM), 8MB (Packet buffer)
- MPN
- C1300X-48NGU-4X
