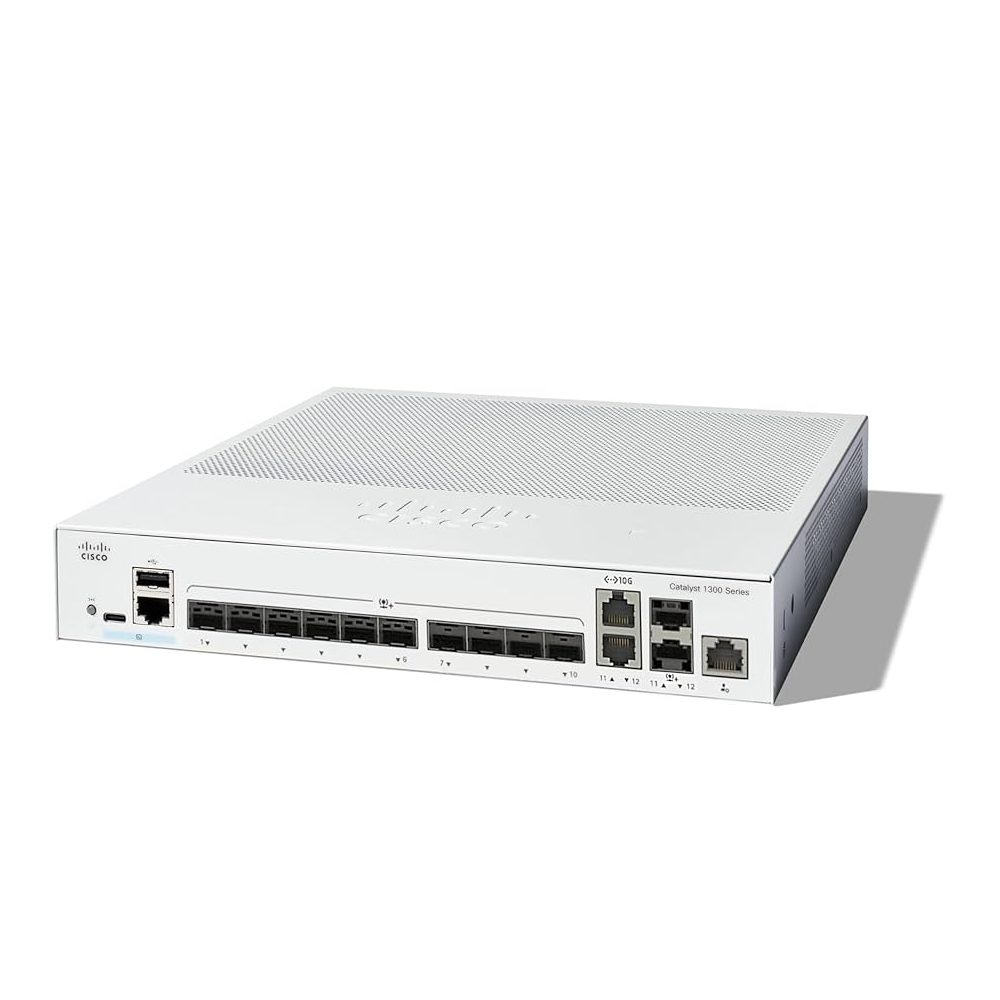

Cisco Catalyst 1300 12-port SFP+, 2x10GE Shared
Описание
Cisco Catalyst 1300 12-port SFP+ switch with 2x10GE shared uplink ports. Fixed port switch with 13 total ports, 10x 10GE SFP+ main ports, and 2x 10GE copper/SFP+ combo uplink ports. Fanless design, internal universal power supply (100-240V 50-60 Hz). Supports hardware stacking of up to 8 switches (up to 200 ports managed as a single system with hardware failover). Dynamic Layer 3 routing. Switching capacity 240 Gbps, forwarding rate 178.57 Mpps. 16,000 MAC addresses. Supports up to 4093 VLANs simultaneously. 8 hardware queues with strict priority and WRR. Includes 1x GE OOB management port, Cisco Business Dashboard, Cisco Business mobile app, Cisco Network Plug and Play (PnP) agent, web UI, SNMP, MIB, RMON, RSPAN, sFlow agent, DHCP, SCP, Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS. Security features: SSH, SSL, IEEE 802.1x, RADIUS authentication, MAC/Web-based authentication, STP, DHCP, IPSG, DAI, IPMB, SCT, SSD, ACLs. IPv6 host mode, dual stack, IPv6 neighbor discovery, DHCPv6, ISATAP tunnel support, IPv6 QoS, ACL, First Hop Security, MLD. Dimensions: 300 x 268 x 44 mm. Rackmount option. Warranty: 99 months.
Specifications
| Management | 1x GE OOB management; Cisco Business Dashboard; Cisco Business mobile app; Cisco Network Plug and Play (PnP) agent; Web user interface; SNMP; MIB; RMON; RSPAN; sFlow agent; DHCP; SCP; Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS and etc. |
| Stackable | Hardware stacking: Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover |
| VLAN (number, standards) | Support for up to 4093 VLANs simultaneously; Port-based/802.1Q tag-based/MAC-based/protocol-based/IP subnet-based/Management/Private/ Guest/unauthenticated VLAN; Dynamic VLAN assignment via RADIUS; ASV; Voice/Multicast TV VLAN |
| QoS | 8 hardware queues; Strict priority and WRR; Port-based, 802.1p VLAN priority-based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DSCP |
| L2 network standards | IEEE 802.3, IEEE 802.3u/ab/ad/z/x/ae/an/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC |
| IPv6 functionality | IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); DAD, ICMP; DHCPv6; IPv6 over IPv4 network with ISATAP tunnel support; IPv6 QoS; ACL; First Hop Security; MLD |
| Security | SSH, SSL, IEEE 802.1x (authenticator role):RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions; MAC/Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; ACLs |
Спецификации
- Warranty
- 99 месеца
- Тип суич
- Fixed Port
- Power Over Ethernet (PoE)
- -
- Свободни (10GB) слотове
- -
- Опция за монтаж
- Rackmount
- Вентилатори
- Fanless
- Маршрутизиране
- Динамично Layer 3 маршрутизиране
- MAC адреси
- 16 000 адреса
- Захранване
- 100-240V 50-60 Hz, вградено, универсално
- Памет (Flash, RAM)
- 512 MB (Flash), 1 GB DDR4 (DRAM), 3 MB (пакетен буфер)
- Капацитет за превключване, Gbps
- 240 Gbps
- Размери (Ш, Д, В), mm
- 300 x 268 x 44 mm
- Общ брой портове
- 13
- Тип основни портове
- 10x 10GE SFP+
- Uplink портове
- 2x 10GE copper/SFP+ combo
- Пропускателна способност, Mpps
- 178.57 Mpps
- MPN
- C1300-12XS
