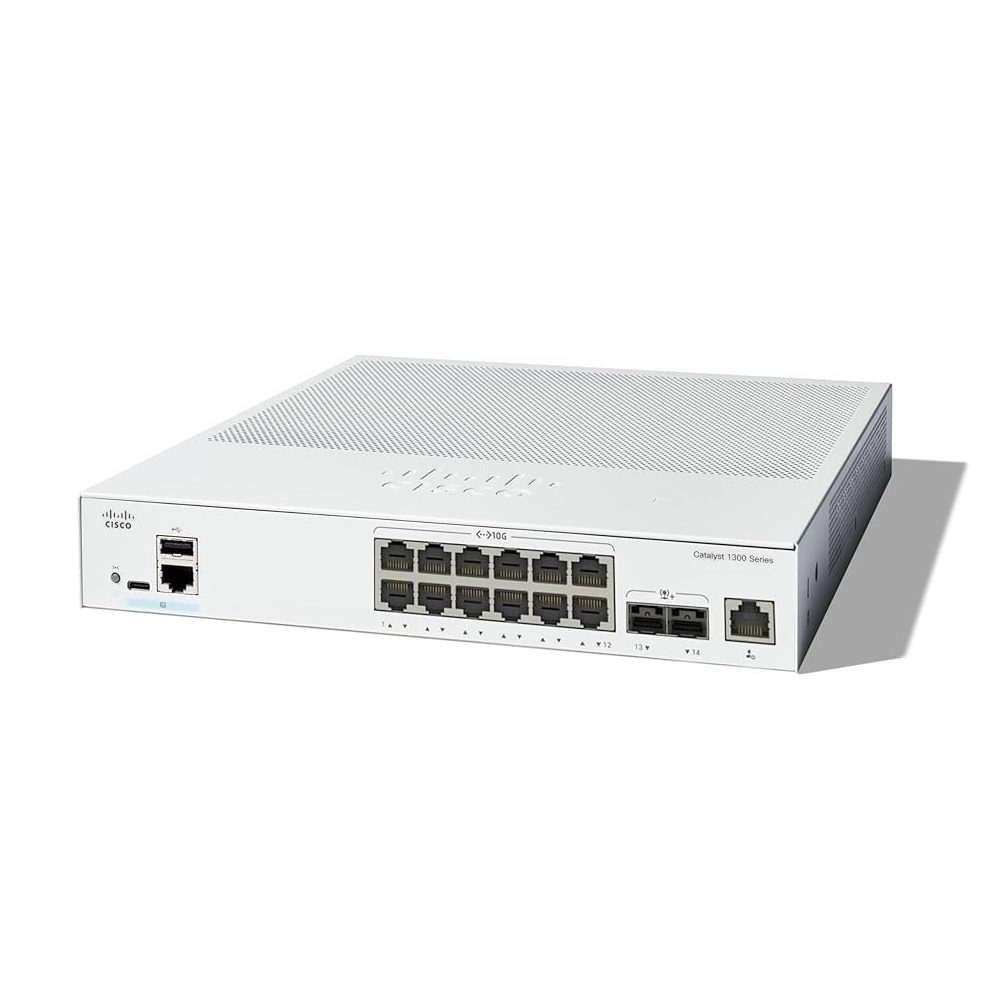

Комутатор Cisco Catalyst 1300 12-port 10GE, 2x10G SFP+
Описание
Cisco Catalyst 1300 12-port 10GE, 2x10G SFP+ switch. Fixed port switch with 15 total ports, 12x10GE main ports, 2x10GE SFP+ uplink ports. Fanless design. Dynamic Layer 3 routing. 280 Gbps switching capacity, 208.33 Mpps forwarding rate. Supports up to 4093 VLANs. 8 hardware queues. Rackmount option. Dimensions: 300 x 268 x 44 mm. Power: 100-240V 50-60 Hz, internal, universal. Management: 1xGE management port, Cisco Business Dashboard, Cisco Business mobile app, Cisco Network Plug and Play (PnP) agent, Web user interface, SNMP, MIB, RMON, RSPAN, sFlow agent, DHCP, SCP, Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS and etc. Hardware stacking: up to 8 switches in a stack, up to 200 ports managed as a single system with hardware failover. Memory: 512 MB Flash, 1 GB DDR4 DRAM, 3 MB packet buffer. MAC addresses: 16,000. Security: SSH, SSL, IEEE 802.1x, RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, single/multiple sessions, MAC/Web-based authentication, STP, DHCP, IPSG, DAI, IPMB, SCT, SSD, ACLs. Warranty: 99 months.
Specifications
| Management | 1xGE management port; Cisco Business Dashboard; Cisco Business mobile app; Cisco Network Plug and Play (PnP) agent; Web user interface; SNMP; MIB; RMON; RSPAN; sFlow agent; DHCP; SCP; Traceroute, single IP management, HTTP/HTTPS, SSH, RADIUS and etc. |
| Stackable | Hardware stacking: Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover |
| VLAN (number, standards) | Support for up to 4093 VLANs simultaneously; Port-based/802.1Q tag-based/MAC-based/protocol-based/IP subnet-based/Management/Private/ Guest/unauthenticated VLAN; Dynamic VLAN assignment via RADIUS; ASV; Voice/Multicast TV VLAN |
| QoS | 8 hardware queues; Strict priority and WRR; Port-based, 802.1p VLAN priority-based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS Queue assignment based on DSCP |
| L2 network standards | IEEE 802.3, IEEE 802.3u/ab/ad/z/x/ae/an/af/at; IEEE 802.1D (STP)/1Q/p VLAN/w RSTP/s Multiple STP/X Port Access Authentication; RFC |
| IPv6 functionality | IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack; IPv6 neighbor and router discovery (ND); DAD, ICMP; DHCPv6; IPv6 over IPv4 network with ISATAP tunnel support; IPv6 QoS; ACL; First Hop Security; MLD |
| Security | SSH, SSL, IEEE 802.1x (authenticator role):RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions; MAC/Web-based authentication; STP; DHCP; IPSG; DAI; IPMB; SCT; SSD; ACLs |
Спецификации
- Гаранция
- 99 месеца
- Тип суич
- Fixed Port
- Power Over Ethernet (PoE)
- -
- Свободни (10GB) слотове
- -
- Опция за монтаж
- Rackmount
- Вентилатори
- Fanless
- Uplink портове
- 2x10GE SFP
- Маршрутизиране
- Динамично Layer 3 маршрутизиране
- MAC адреси
- 16 000 адреса
- Захранване
- 100-240V 50-60 Hz, вградено, универсално
- Памет (Flash, RAM)
- 512 MB (Flash), 1 GB DDR4 (DRAM), 3 MB (пакетен буфер)
- Общ брой портове
- 15
- Тип основни портове
- 12x10GE
- Капацитет за превключване, Gbps
- 280 Gbps
- Пропускателна способност, Mpps
- 208.33 Mpps
- Размери (Ш, Д, В), mm
- 300 x 268 x 44 mm
- MPN
- C1300-12XT-2X
