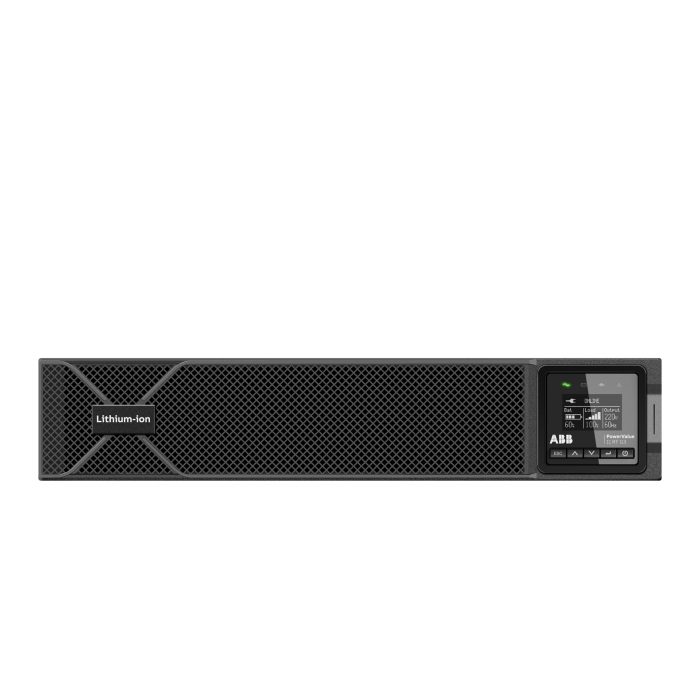

ABB UPS PowerValue 11RT G3 LIB 3 kVA
Описание
ABB UPS PowerValue 11RT G3 LIB 3 kVA is an online double conversion uninterruptible power supply. It provides 3000VA/3000W output power. The unit features 9 outlets: 1 main outlet group (with 1 x IEC C19 + 4 x IEC C13) and 1 programmable outlet group (with 4 x IEC C13). Input: 1x IEC C20. It includes RS232 on Sub-D9 port (for service), connectivity slot, and USB. The battery is built-in and optional external, Li-FePO4, with 15S3P cells of 3.2 V. Protections include backfeed protection, overload on bypass mode, bypass-automatic static switch, and IP 20. Standards: EN ISO 9001, IEC 62040-2:2016 C2, EN IEC 62040-2:2018 C2, IEC61000-2-2, EN61000; EN IEC 62040-1:2019+A11:2021, IEC 62040-1:2017+A2:2022, IEC 62619:2022. Dimensions: 438 x 85.5 x 600 mm. Warranty: 36 months.
Specifications
| Outlet type | 1 main outlet group (With 1 x IEC C19 + 4 x IEC C13) + 1 programmable outlet group (With 4 x IEC C13); Input: 1x IEC C20; RS232 on Sub-D9 port (For service); Connectivity slot; USB |
| Protections | Backfeed protection; Overload on bypass mode; Bypass-automatic: Static switch; IP 20 |
| Standards | EN ISO 9001, IEC 62040-2:2016 C2, EN IEC 62040-2:2018 C2, IEC61000-2-2, EN61000; EN IEC 62040-1:2019+A11:2021 IEC 62040-1:2017+A2:2022 IEC 62619:2022 |
Спецификации
- Гаранция
- 36 месеца
- Технология
- Онлайн/Двойно преобразуване
- Изх. мощност, VA
- 3000VA/3000W
- Брой гнезда
- 9
- Вх.напрежение, V
- 200-240 V AC; Приемливо напрежение (установено, ефективна стойност): 110-300 V AC
- Тип батерия
- Вградена и (опционално) външна; Li-FePO4; Брой клетки 3.2 V: 15S3P
- Други
- 438 x 85.5 x 600 mm
- MPN
- 4NWP100300R0004
- EAN
- 7640169265686
