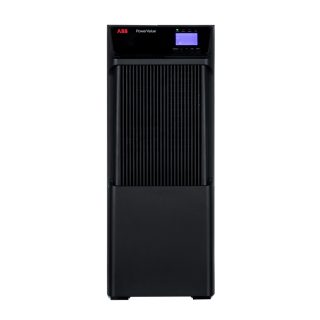

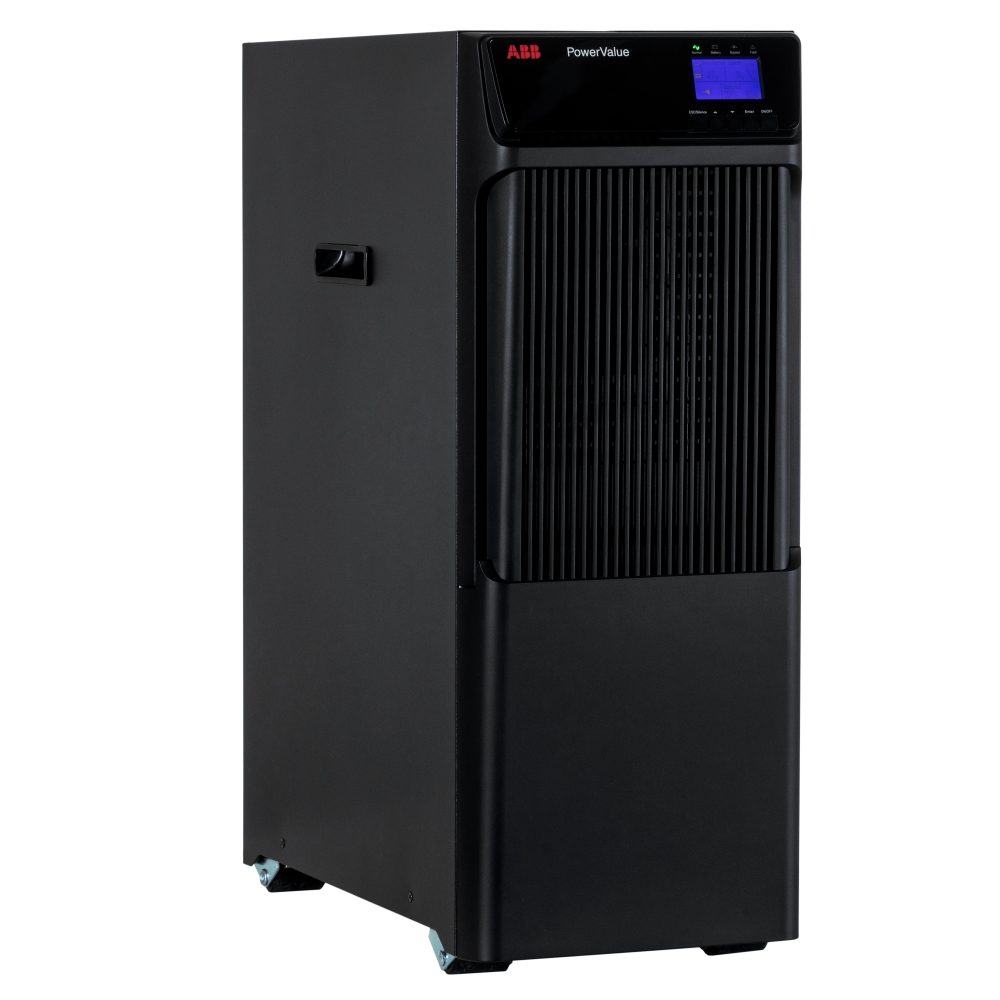

ABB 11T G2 10KVA S UPS

ABB Power Value 11T G2 is a single-phase input/output UPS with double online conversion and continuous power up to 10 kW, helping to secure your critical loads. It can be applied in server rooms, laboratories, sensitive electronics, ATM devices and more, while filtering input voltage from unwanted peaks, sags, harmonics and others. The VFI (voltage and frequency independent) function reduces energy costs with double conversion and efficiency up to 95% (up to 98% in ECO mode). Two or three units can be connected in parallel to reach a maximum power of 30 kW with additional redundancy. Easy to install and low maintenance, Power Value 11T G2 is among the most compact UPSs on the market. The battery module (EBM) allows up to 2 hours of extended autonomy. Each battery module is designed for a specific UPS model with easy setup and start-up via LCD display.

High reliability: double conversion topology protects the load from all incoming grid disturbances; parallel operation of up to 3 UPSs (6-10 kVA only) with additional protection; easy battery addition or replacement; wide voltage range. Low TCO: various autonomy times; high efficiency regardless of load; reduced installation costs; compact design; output power factor 1.0 (6-10 kVA only). Flexible design: multiple connection options; parallel operation of up to 4 UPSs for extended autonomy; models with extended autonomy available; efficient service concept; manually operated bypass switch (6-10 kVA only); easy installation and maintenance (plug and play); easy-to-use display; remote monitoring and communication options.

Power Value 11T G2 offers up to 11% more active power than any other UPS with a power factor of 0.9. This type of UPS optimizes the customer's energy budget with double conversion and efficiency up to 95% (up to 98% in ECO mode). Low input line disturbances: PF ≥ 0.995 @ 100% linear load; THDi < 3%. Flexible configuration for autonomy time: UPS and EBM with/without batteries (long-duration backup). Adjustable constant voltage and battery charging. Digital charging technology ensures precise adjustment. The UPS is delivered with an integrated parallel board and cables, no additional hardware needed. The series comes with standard warranty and attractive value.

Standard configuration: free-standing IP20; single-phase input/output; online double conversion; parallel operation of up to 3 UPSs, allowing capacity increase up to 30 kW or additional redundancy/protection (6-10 kVA only); LCD; wide frequency range; built-in batteries (B/B2 versions); maintenance bypass (6-10 kVA only); easy setup and installation. Options: additional battery cabinet (EBM), SNMP, ModBus and AS400 network cards for remote monitoring via web browser; sensors combined with network card providing environmental status, humidity and temperature; sensors can be embedded in the system; connectivity via Win Power SNMP (network management card), mini SNMP.

Specifications
