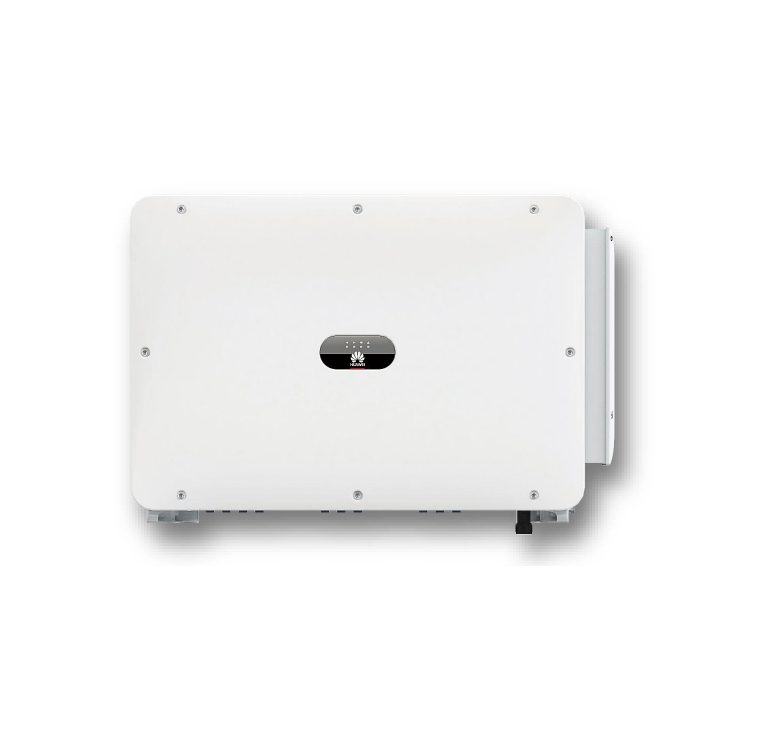

Huawei инвертор SUN2000-150KTL-MG0 (150 kW/400V) търговски трифазен
Описание
The Huawei Inverter SUN2000-150KTL-MG0 is a commercial three-phase solar panel inverter with a nominal output of 150 kW. It features max. efficiency of 98.8% @480 V and 98.6% @400 V. The inverter supports a maximum input voltage of 1100 V, MPPT operating voltage range of 200 V to 1000 V, and has 7 MPP trackers. It provides a nominal AC active power of 150,000 W and a maximum AC active power of 165,000 W (cosf=1). The nominal output voltage is 380 V/400 V/480Vac. The inverter includes protection features such as IP66, anti-islanding, AC overcurrent, DC reverse polarity, arc fault, PV ground fault protection, and PID recovery. It operates in a temperature range of -25 to 60 °C and humidity range of 0% RH to 100% RH. Interfaces include RS485, USB, Monitoring BUS (MBUS), and optional Smart Dongle 4G/WLAN. The inverter weighs 102 kg and has dimensions of 1000 x 710 x 395 mm. It comes with a 60-month warranty.
Specifications
| Input voltage | Max. input voltage: 1100 V, MPPT Operating voltage range: 200 V ~ 1000 V, Start Voltage: 200 V, Max. input number per MPP tracker: 3, Number of MPP Trackers: 7 |
| Output current, A | Max. output current: 253.2 A @380 V, 240.5 A @400 V, 200.5 A @480Vac, Nominal output current: 227.9 A @380 V, 216.5 A @400 V, 180.4 A @480Vac |
| Protection features | IP66, Anti islanding/AC Overcurrent/DC Reverse polarity/Arc Fault/PV Ground Fault Protection, PV array String Fault Monitoring, AC/DC Surge Arrester, DC Insulation Resistance/Terminal Temperature Detection, Residual Current Monitoring Unit, PID Recovery |
| Standards | Grid Connection Standards: VDE-AR-N4105, EN 50549-1, EN 50549-2, RD 661, RD 1699, C10/11 |
Спецификации
- Цвят
- Бял
- Гаранция
- 60 месеца
- Тегло, kg
- 102 kg
- Тип на свързване
- Трифазен
- Индикатори
- LED индикатори
- Работна температура
- -25 ~ 60 °C
- Диапазон на влажността при експлоатация
- 0% RH ~ 100% RH
- Честота, Hz
- Номинална честота на мрежата AC: 50 Hz / 60 Hz
- Тип на охлаждане
- Интелигентно въздушно охлаждане
- Ефективност
- Макс. ефективност 98.8% @480 V, 98.6% @400 V
- Изх. мощност, W
- 150 000 W Номинална AC активна мощност, 165 000 W Макс. AC активна мощност (cosf=1)
- Изх. мощност, VA
- 165 000 VA Макс. AC привидна мощност
- Изходно напрежение
- Номинално изходно напрежение: 380 V/400 V/480Vac
- Interface
- RS485, USB, Monitoring BUS (MBUS), Smart Dongle 4G/WLAN (опционален)
- Сигурност
- EN 62109-1/-2, IEC 62109-1/-2, IEC 62116, IEC 61727, IEC 60068, IEC 61683
- Размери (Ш, Д, В), mm
- 1000 x 710 x 395 mm
- MPN
- 150K-MG0-DC
