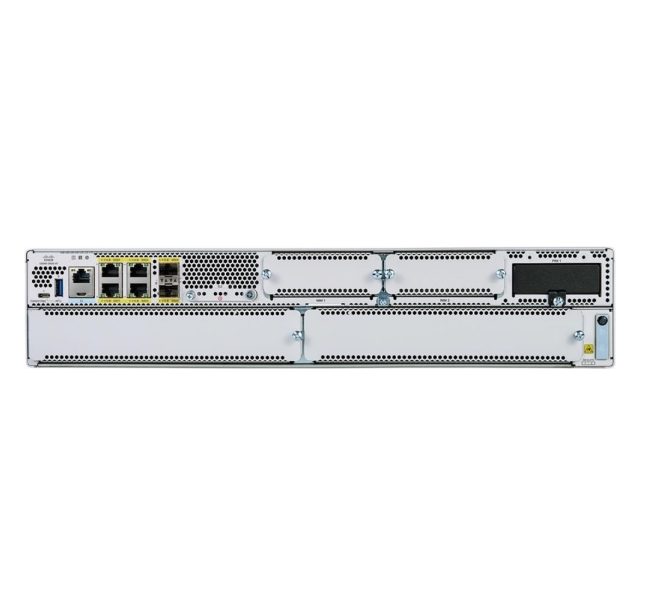

Cisco Catalyst C8300-2N2S-6T Router
Описание
The Cisco Catalyst C8300-2N2S-6T Router is part of the Catalyst C8300 series. It features 6x 1Gbps embedded Layer 3 Ethernet ports (2x Ethernet ports that can support Small Form-Factor Pluggable (SFP or SFP+) + 4x RJ-45 connections, enabling fiber or copper connectivity). It supports modular LAN ports with modules such as NIM-ES2-4/8, NIM-ES2-8-P, and C-SM-16P4M2X/40P8M2X. It has 2x SFP/SFP+ ports, 2x NIM slots, 1x PIM module slot, and 2x SM network slots. It supports up to 4000 IPsec SVTI tunnels. Security features include built-in end-to-end segmentation (VPNs), ZBFW, PKI, Cisco DNA Layer Security, Snort IPS/IDS, URL Filtering, Advanced Protection (AMP), ThreatGrid (TG), and ALG for ZBFW. It supports a variety of voice modules. It comes with 8G default DRAM, upgradeable to 16G and 32G, and integrated on-board 8G flash (not upgradeable) with M.2 storage upgrade options. It has 0 USB ports. Dimensions: 254.3 x 470.4 x 88.9 mm. All Catalyst 8300 models ship with default 16G M.2 USB for SD-WAN logging and additional storage, upgradeable to 32G M.2 USB and 600G M.2 NVMe. It supports up to 5 Gbps of IPSec Internet Mix (IMIX) traffic and ships with dual power supplies for redundancy. Warranty: 12 months.
Specifications
| Integrated WAN ports | 6x 1Gbps embedded Layer 3 Ethernet ports (2x Ethernet ports that can support Small Form-Factor Pluggable (SFP or SFP+) + 4x RJ-45 connections, enabling fiber or copper connectivity) |
| Modular LAN ports | Supported modules: NIM-ES2-4/8 - Cisco 4/8-port Gigabit Ethernet switch NIM; NIM-ES2-8-P - Cisco 8-port Gigabit Ethernet switch NIM with PoE support; C-SM-16P4M2X/40P8M2X - Cisco 22/50-port Catalyst L2 switch module with UADP ASIC |
| Security | Built-in end-to-end segmentation (VPNs), ZBFW, PKI, Cisco DNA Layer Security, Snort IPS/IDS, URL Filtering, Advanced Protection(AMP), ThreatGrid(TG), ALG for ZBFW |
| DRAM memory built-in/max | 8G default DRAM and can be upgraded to 16G and 32G for higher scale and performance |
| Flash memory built-in/max | Integrated on-board 8G flash and it is not upgradeable. M.2 storage provides upgrade options for additional storage |
| Additional information | All the Catalyst 8300 models ship with default 16G M.2 USB for SD-WAN logging and additional storage on the platform. It can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe). |
| Other | Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic. All Catalyst 8300 platforms ship with dual power supplies for redundancy |
Спецификации
- Гаранция
- 12 месеца
- Модул интегрирани услуги
- 1x PIM
- Глас
- Поддържа разнообразие от гласови модули
- USB порт
- 0
- Серия / поредица
- Catalyst C8300
- SFP базирани портове
- 2x SFP/SFP+
- IPSec VPN тунели
- 4000 - Брой IPsec SVTI тунели
- Брой EHWIC слотове
- 2x NIM
- Мрежови слот NM/SM
- 2x SM
- Размери (Ш, Д, В), mm
- 254.3 x 470.4 x 88.9 мм
- MPN
- C8300-2N2S-6T
